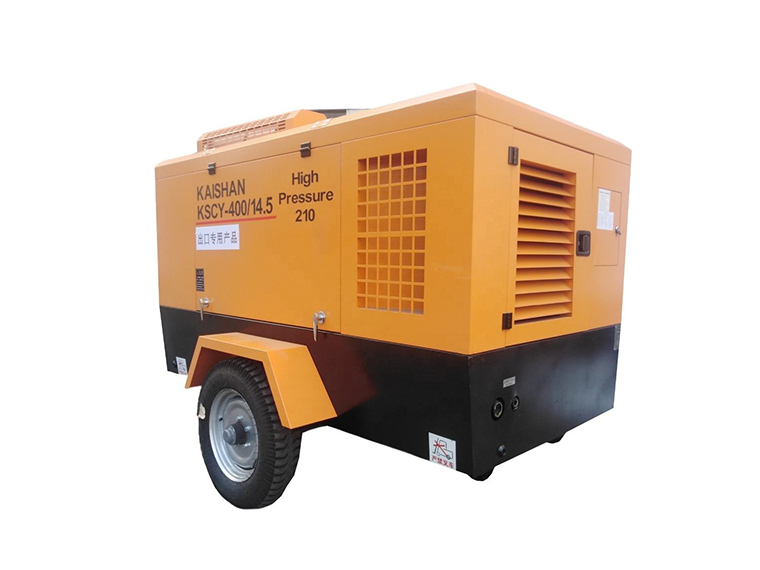

KSCY 400-14.5
According to the usage pressure, the air volume adjustment device automatically and steplessly adjusts the suction volume of the air compressor and the speed of the diesel engine.
Working Pressure:
14.5 bar
Gas Type:
Air
Condition:
New
Type:
Screw
Introduction
Advantage
Specification
Detailed Images
Applications
Service
Introduction
KSCY 400-14.5
Automatic gas volume control system
According to the usage pressure, the air volume adjustment device automatically and steplessly adjusts the suction volume of the air compressor and the speed of the diesel engine. Ensure a perfect match between gas supply and consumption, in order to achieve optimal results with the lowest fuel consumption.
Low noise operation
Silent outer cover design, low operating noise, and more environmentally friendly machine design
Special engine with strong power
Equipped with heavy-duty specialized diesel engines such as Yuchai and Cummins, achieving the best combustion state throughout the entire range of engine operation, the product has higher reliability, stronger power, and better fuel economy.
According to the usage pressure, the air volume adjustment device automatically and steplessly adjusts the suction volume of the air compressor and the speed of the diesel engine. Ensure a perfect match between gas supply and consumption, in order to achieve optimal results with the lowest fuel consumption.
Low noise operation
Silent outer cover design, low operating noise, and more environmentally friendly machine design
Special engine with strong power
Equipped with heavy-duty specialized diesel engines such as Yuchai and Cummins, achieving the best combustion state throughout the entire range of engine operation, the product has higher reliability, stronger power, and better fuel economy.
Get A Free Quote
Advantage
Advantage Of The Air Compressor
Six Strong Advantages Focus On Air Compressor Industry
Source Manufacturer
Professional Team
Rich Experience
Excellent Technology
Fast Delivery
All in Stock
Specification
Technical Parameter
| Model | Pressure (Mpa) | Capacity m3/min | Diesel power (KW) | Outlet | Weight (kg) | Dimession (mm) |
| KSCY-220/8 | 0.8 | 6 | 55 | G1 1/4×1，G3/4×1 | 1440 | 3000×1760×1820 |
| KSCY-330/8 | 0.8 | 9.5 | 88 | G1 1/4×1，G3/4×1 | 1550 | 3240×1760×1785 |
| KSCY-360/13 | 1.3 | 10 | 118 | G1 1/2×1，G3/4×1 | 1880 | 3300×1880×2100 |
| KSCY-425/10 | 1 | 12 | 118 | G1 1/2×1，G3/4×1 | 1880 | 3300×1880×2100 |
| KSCY-400/14.5 | 1.45 | 11 | 118 | G1 1/2×1，G3/4×1 | 1880 | 3300×1880×2100 |
| KSCY-550/13(Cummins) | 1.3 | 15 | 132 | G1 1/2×1，G3/4×1 | 2400 | 3000×1520×2200 |
| KSCY-550/13H(Yuchai) | 1.3 | 15 | 140 | G1 1/2×1，G3/4×1 | 2400 | 3000×1520×2200 |
| KSCY-550/13T(Yuchai) | 1.3 | 15 | 140 | G1 1/2×1，G3/4×1 | 2400 | 3000×1520×2200 |
| KSCY-560/15 | 1.5 | 16 | 140 | G1 1/2×1，G3/4×1 | 2400 | 3000×1600×2230 |
| KSCY-580/17(Cummins) | 1.7 | 17 | 194 | G2×1，G3/4×1 | 3200 | 3200×1800×2450 |
| KSCY-580/17H(Yuchai) | 1.7 | 17 | 194 | G2×1，G3/4×1 | 3200 | 3200×1800×2450 |
| KSCY-680/14.5 | 1.45 | 19 | 194 | G2×1，G3/4×1 | 3200 | 3200×1800×2450 |
| KSCY-750/20 | 2 | 22 | 228 | G2×1，G3/4×1 | 3900 | 3300×1800×2300 |
PRODUCT Images
Detailed Images
Kaishan group is a professional compressor and drill rig enterprise with over 60 years of history. It is at present the largest air compressor manufacturer in China
Detailed Images

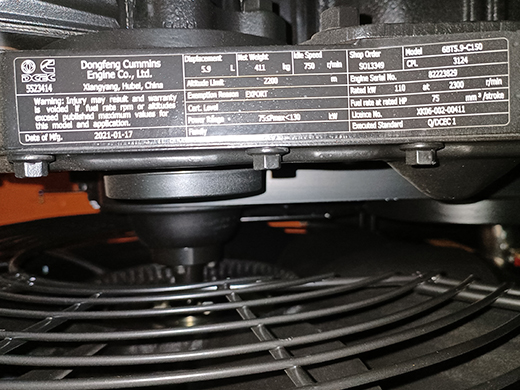

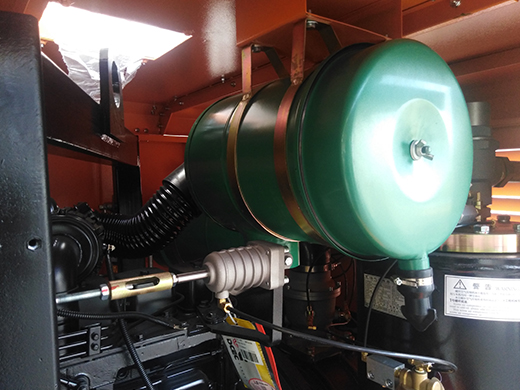

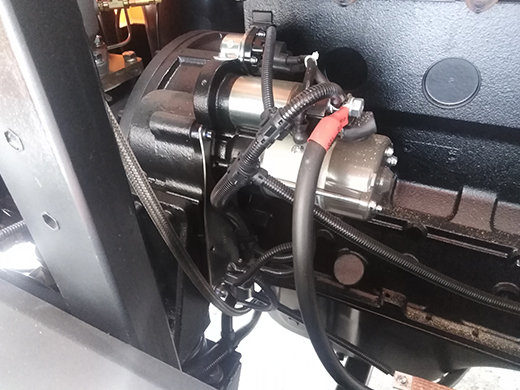

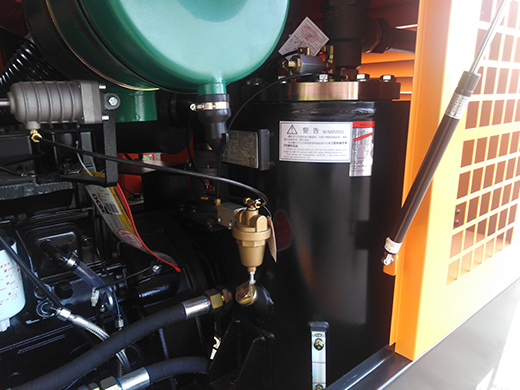

Accessories

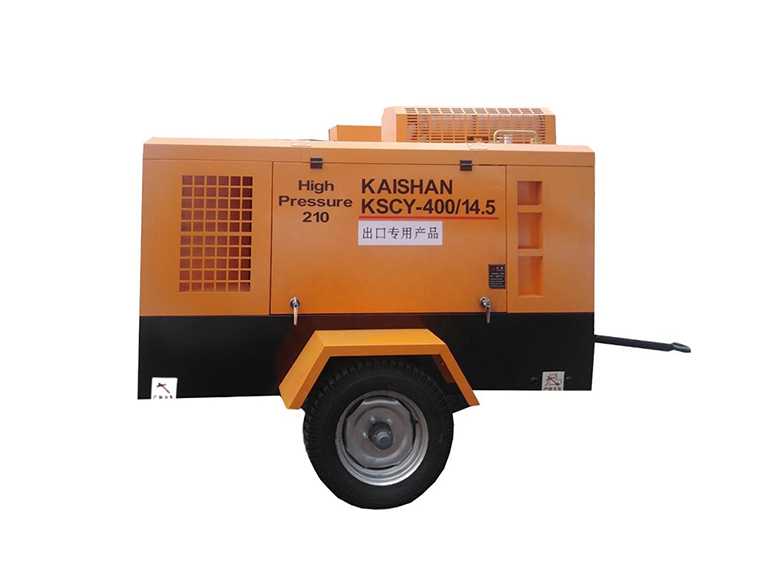

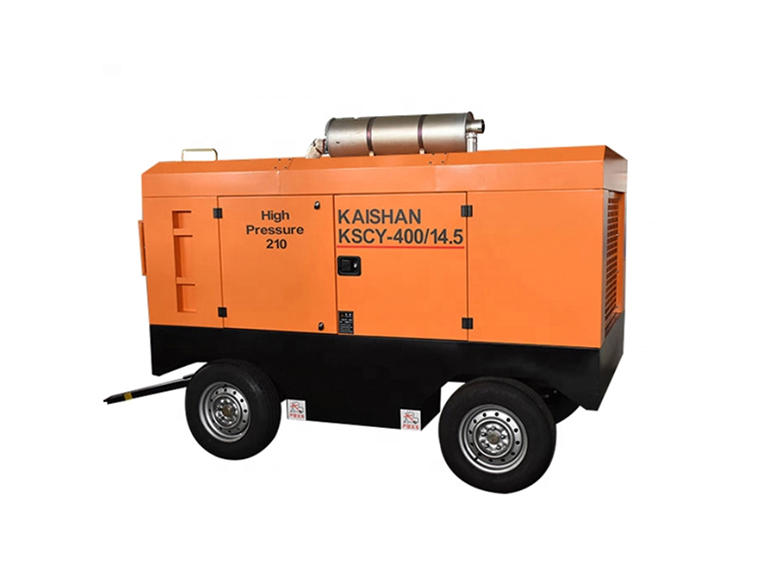

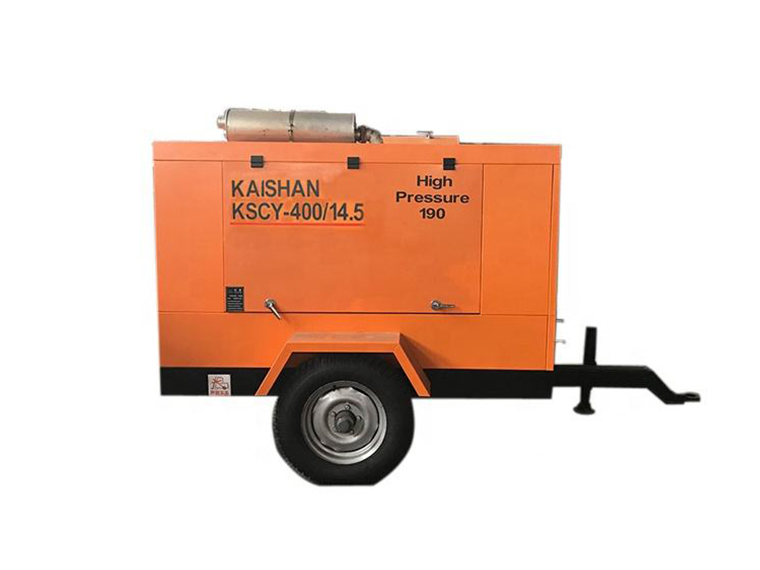

Machine picture
Machine picture
Machine picture
Machine picture
Aplication

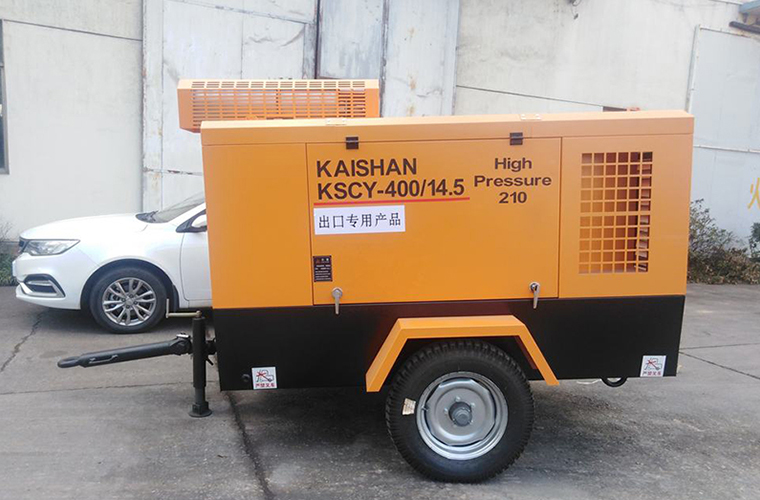

Customer Application Demonstration
Low noise operationSilent type cover design, low noise operation, more environmentalprotection machine design.
SERVICE
After-sale Service
Kaishan group is a professional compressor and drill rig enterprise with over 60 years
of history. It is at present the largest air compressor manufacturer in China
Free Maintenance Or Parts Replacement
During the quality guarantee term if any quality problem with the equipment we
responsible for free maintenance or parts replacement.
Free Technical Support
We supply a permanent free technical support to all customers.
Integration Testing
Our equipments would through integration testing before delivery, ex factory
pass rate would reach 100%. We can also supply you photos to prove it's really
assembling in Kaishan factory but not by some small counterfeit workshop
Send Us A Message
If you have any questions or would like tobook a session please contact us.
Most Popular Questions
Kaishan group is a professional compressor and drill rig enterprise with over 60 years
of history. It is at present the
largest air compressor manufacturer in China
How is the quality of your machine?
We have strict quality control process ensure the our products meet the highest standards.
Are you a trading company or a manufacturer?
We are a factory with more than 10 years of manufacturing experience
How to inspect the goods?
We will test the machine, the whole process can be live or recorded video, if customers have time, you can come to the factory to watch the test process.
Do you have after-sales service?
We have after-sales team in the United States, Southeast Asia, the Middle East, Europe, Africa are stationed year-round, at the same time, we will be sent from the domestic professional maintenance master above to solve the problem.
How about quality assurance?
We have a complete and traceable system of quality accountability, from the purchase of raw materials to the delivery of machines. Every aspect of production is precisely controlled.
How long is your delivery cycle?
Generic models are usually in stock and can take up to 20 working days if produced. Customised products take 40-50 working days. Each machine we test drive before it goes out to the customer to ensure the performance of the product in the hands of the customer.
