KSCY 425-10

Your Position: Home > Products > Air Compressor > Portable Compressor

KSCY 425-10

Diesel portable screw air compressors are widely used in highways, railways, mines, water conservancy, and shipbuilding, urban construction, energy

Voltage:

Customer's Requirement

Dimension:

3300*1880*2100mm

Weight:

1880KG

Air capacity:

10m3/min

Quote Now

Send E-mail

Share With:

Introduction

Advantage

Specification

Detailed Images

Applications

Service

Introduction

KSCY 425-10

Diesel portable screw air compressors are widely used in highways, railways, mines, water conservancy, and shipbuilding, urban construction, energy

Features of hot selling in Chile KAISHAN air compressor KSCY425-10 air compressor for deep well drilling

1.Low operating sound and less vibration design.Easy serviceability.

2.Low fuel consumption to realize far distance outdoor usage;Full protection system,energy saving.

3.High efficient Airend:
Large diameter rotor, airend connect with diesel engine through coupling and no reduction gear inside, more reliability, the
rotate speed is same with the diesel engine's, more longer lifespan.

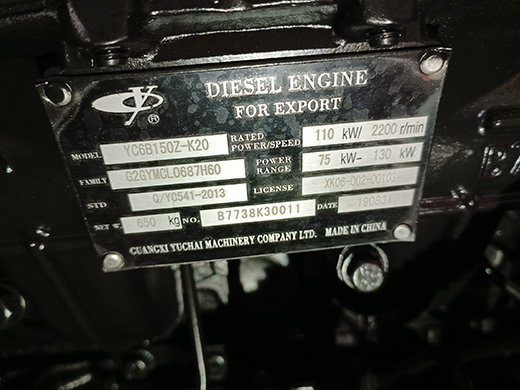

4.Diesel Engine of Famous Brand:
Select the diesel engine of COMMINS and YUCHAI brand, satisfy the emission
requirement of Europe, low oil consumption, after sale service system all over China.

5.Good adaptability:
The Portable Air Compressor automatically control the air delivery of diesel engine by matching the demand of air consumption,
which equals to frequency conversion control in motor power screw air compressor.

Get A Free Quote

Advantage

Advantage Of The Air Compressor

Six Strong Advantages Focus On Air Compressor Industry

Source Manufacturer

Professional Team

Rich Experience

Excellent Technology

Fast Delivery

All in Stock

Specification

Technical Parameter

Model	Pressure (Mpa)	Capacity m3/min	Diesel power (KW)	Outlet	Weight (kg)	Dimession (mm)
KSCY-220/8	0.8	6	55	G1 1/4×1，G3/4×1	1440	3000×1760×1820
KSCY-330/8	0.8	9.5	88	G1 1/4×1，G3/4×1	1550	3240×1760×1785
KSCY-360/13	1.3	10	118	G1 1/2×1，G3/4×1	1880	3300×1880×2100
KSCY-425/10	1	12	118	G1 1/2×1，G3/4×1	1880	3300×1880×2100
KSCY-400/14.5	1.45	11	118	G1 1/2×1，G3/4×1	1880	3300×1880×2100
KSCY-550/13(Cummins)	1.3	15	132	G1 1/2×1，G3/4×1	2400	3000×1520×2200
KSCY-550/13H(Yuchai)	1.3	15	140	G1 1/2×1，G3/4×1	2400	3000×1520×2200
KSCY-550/13T(Yuchai)	1.3	15	140	G1 1/2×1，G3/4×1	2400	3000×1520×2200
KSCY-560/15	1.5	16	140	G1 1/2×1，G3/4×1	2400	3000×1600×2230
KSCY-580/17(Cummins)	1.7	17	194	G2×1，G3/4×1	3200	3200×1800×2450
KSCY-580/17H(Yuchai)	1.7	17	194	G2×1，G3/4×1	3200	3200×1800×2450
KSCY-680/14.5	1.45	19	194	G2×1，G3/4×1	3200	3200×1800×2450
KSCY-750/20	2	22	228	G2×1，G3/4×1	3900	3300×1800×2300

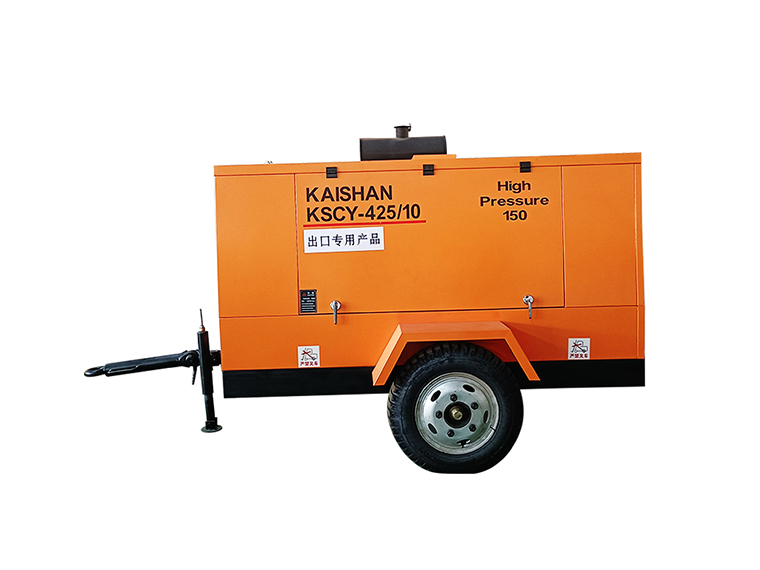

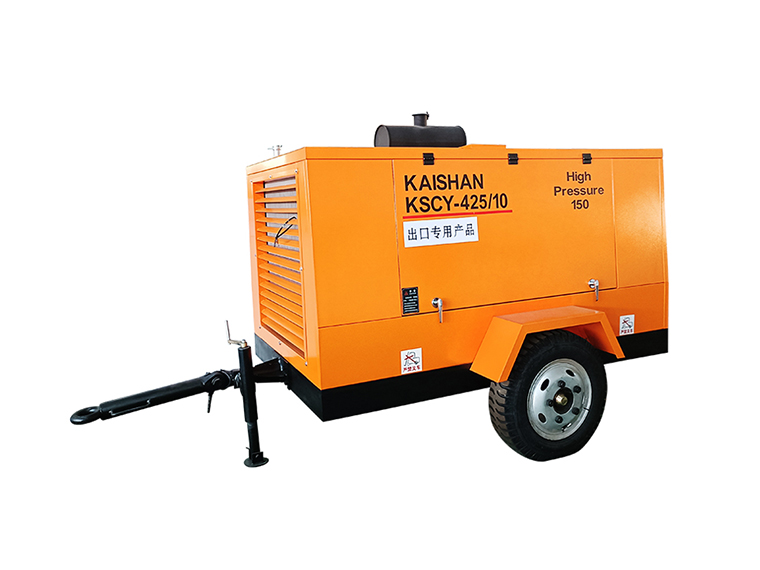

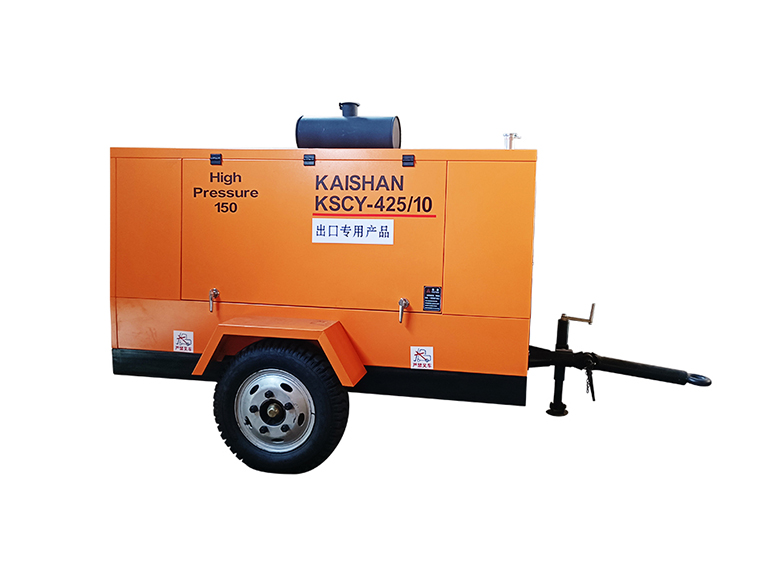

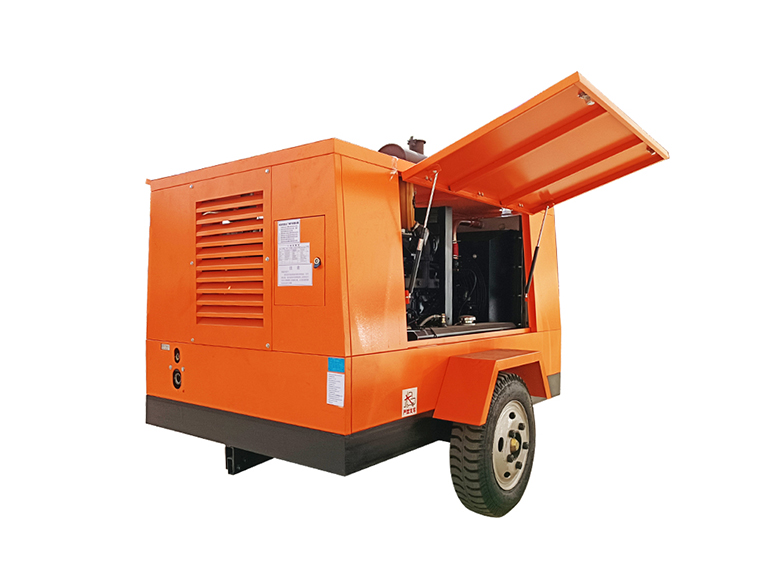

PRODUCT Images

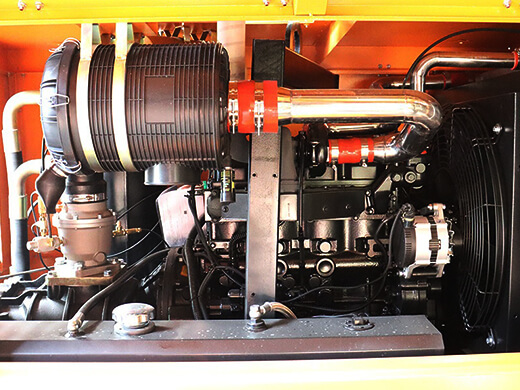

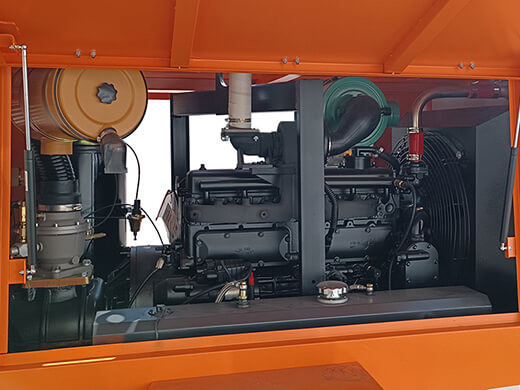

Detailed Images

Kaishan group is a professional compressor and drill rig enterprise with over 60 years of history. It is at present the largest air compressor manufacturer in China

Detailed Images

Accessories

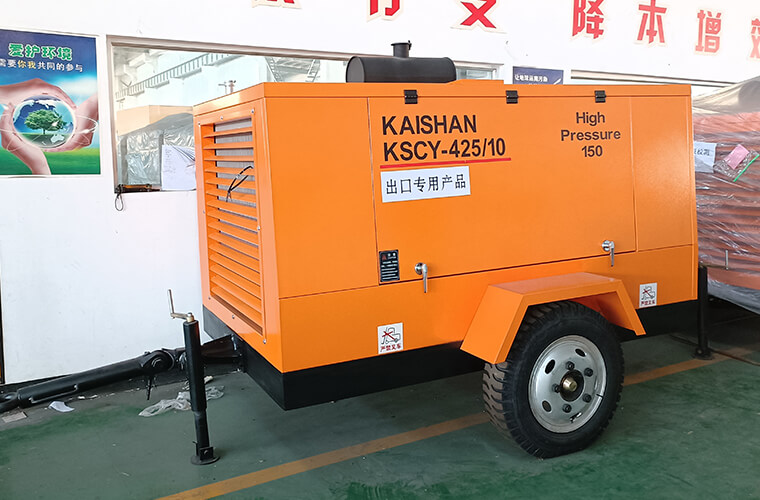

Machine picture

Aplication

Customer Application Demonstration

Low noise operationSilent type cover design, low noise operation, more environmentalprotection machine design.

Application Demonstration

SERVICE

After-sale Service

Kaishan group is a professional compressor and drill rig enterprise with over 60 years of history. It is at present the largest air compressor manufacturer in China

Free Maintenance Or Parts Replacement

During the quality guarantee term if any quality problem with the equipment we responsible for free maintenance or parts replacement.

Free Technical Support

We supply a permanent free technical support to all customers.

Integration Testing

Our equipments would through integration testing before delivery, ex factory pass rate would reach 100%. We can also supply you photos to prove it's really assembling in Kaishan factory but not by some small counterfeit workshop
