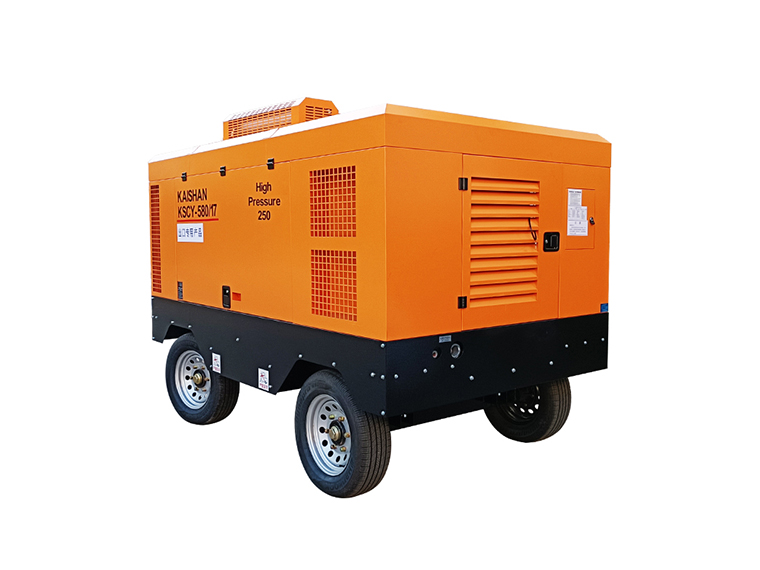

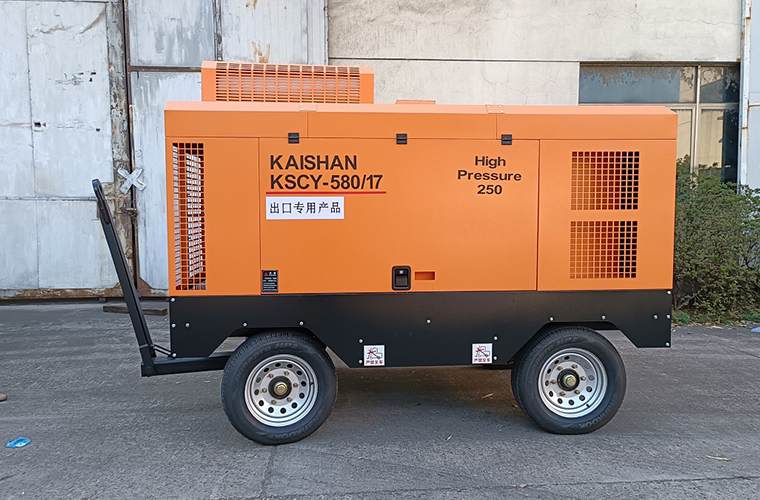

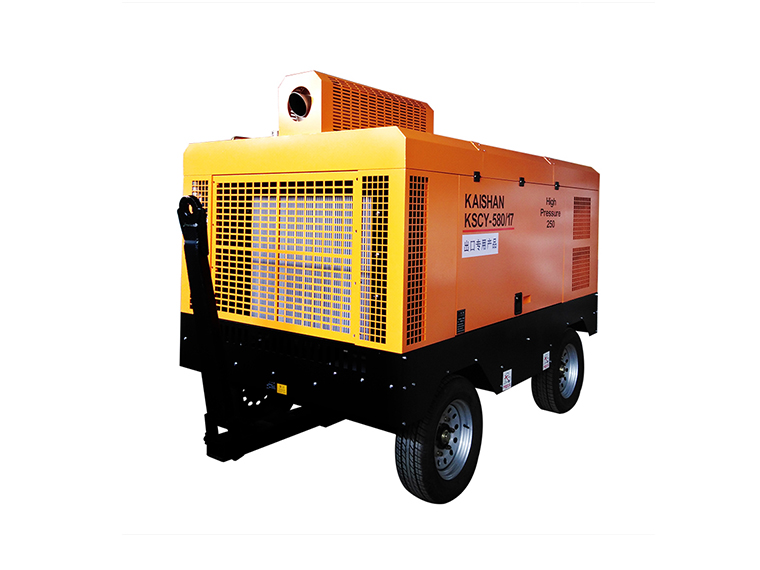

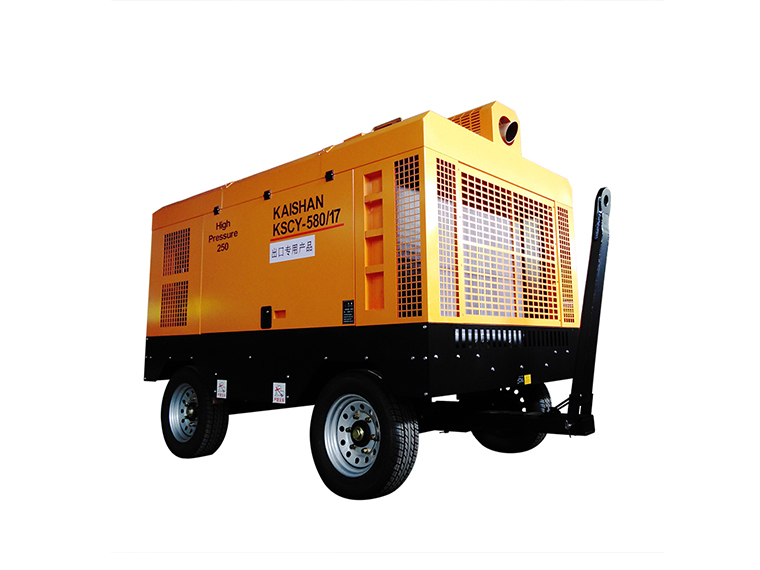

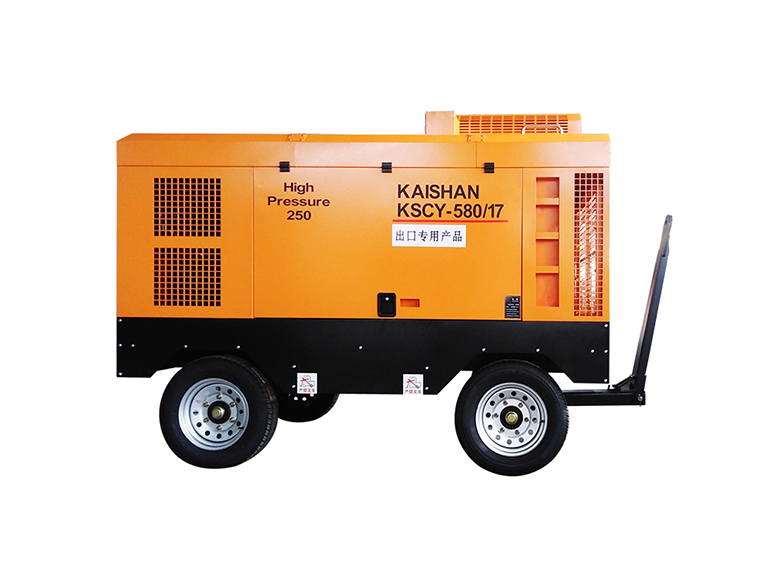

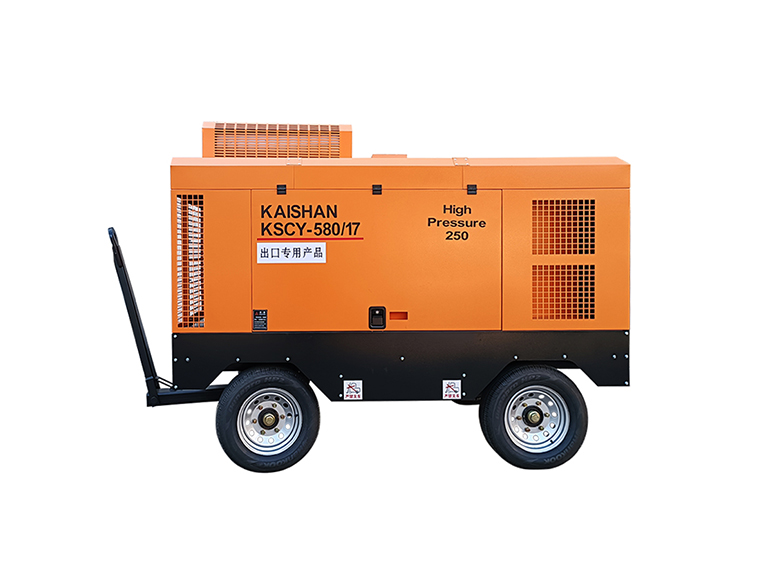

KSCY 580-17
KAISHAN KSCY Diesel portable Screw Air Compressor adopts 0-100% infinitely variable control of Capacity to realize optimal energy saving effect.
Voltage:
220v/110v
Dimension:
3200*1800*2450mm
Weight:
3200KG
Motor power:
Yuchai 260HP
Share With:
KSCY 580-17
KSCY 580-17
KSCY 580-17
KSCY 580-17
KSCY 580-17
Introduction
Advantage
Specification
Detailed Images
Applications
Service
Introduction
KSCY 580-17
KAISHAN KSCY Diesel portable Screw Air Compressor

KAISHAN KSCY Diesel portable Screw Air Compressor adopts 0-100% infinitely variable control of Capacity to realize optimal energy saving effect.

Design Characteristics of Screw Rotor Profile:

1. It fully realizes "Convex-Convex" engagement to assist in the formation of hydrodynamic lubrication film, to reduce horizontal leakage passing the contact zone, and to improve efficiency of the compressor; improve rotor processing and testing property.
2. It adopts the design thought of "large rotor, large bearing and low speed method", thus its revolving speed is 30-50% lower than that of other brands to reduce noise, vibration, and exhaust temperature, improve rotor rigidity, increase service life, and reduce sensibility to sundries and oil carbide.
3. Its power range is 4~355KW, where 18.5~250KW applies to the compressor without direct-coupled gearbox, 200KW and 250KW apply to the compressor with Level 4 direct-coupled motor and the speed is as low as 1480 rmp.
4. It fully conforms to and exceeds requirements in GB19153-2003 Limited Values of Energy Efficiency and Evaluating Values of Energy Conservation of Capacity Air Compressors.
Get A Free Quote
Advantage
Advantage Of The Air Compressor
Six Strong Advantages Focus On Air Compressor Industry
Source Manufacturer
Professional Team
Rich Experience
Excellent Technology
Fast Delivery
All in Stock
Specification
Technical Parameter
Model Pressure (Mpa) Capacity m3/min Diesel power (KW) Outlet Weight (kg) Dimession (mm)
KSCY-220/8 0.8 6 55 G1 1/4×1,G3/4×1 1440 3000×1760×1820
KSCY-330/8 0.8 9.5 88 G1 1/4×1,G3/4×1 1550 3240×1760×1785
KSCY-360/13 1.3 10 118 G1 1/2×1,G3/4×1 1880 3300×1880×2100
KSCY-425/10 1 12 118 G1 1/2×1,G3/4×1 1880 3300×1880×2100
KSCY-400/14.5 1.45 11 118 G1 1/2×1,G3/4×1 1880 3300×1880×2100
KSCY-550/13(Cummins) 1.3 15 132 G1 1/2×1,G3/4×1 2400 3000×1520×2200
KSCY-550/13H(Yuchai) 1.3 15 140 G1 1/2×1,G3/4×1 2400 3000×1520×2200
KSCY-550/13T(Yuchai) 1.3 15 140 G1 1/2×1,G3/4×1 2400 3000×1520×2200
KSCY-560/15 1.5 16 140 G1 1/2×1,G3/4×1 2400 3000×1600×2230
KSCY-580/17(Cummins) 1.7 17 194 G2×1,G3/4×1 3200 3200×1800×2450
KSCY-580/17H(Yuchai) 1.7 17 194 G2×1,G3/4×1 3200 3200×1800×2450
KSCY-680/14.5 1.45 19 194 G2×1,G3/4×1 3200 3200×1800×2450
KSCY-750/20 2 22 228 G2×1,G3/4×1 3900 3300×1800×2300
PRODUCT Images
Detailed Images
Kaishan group is a professional compressor and drill rig enterprise with over 60 years of history. It is at present the largest air compressor manufacturer in China

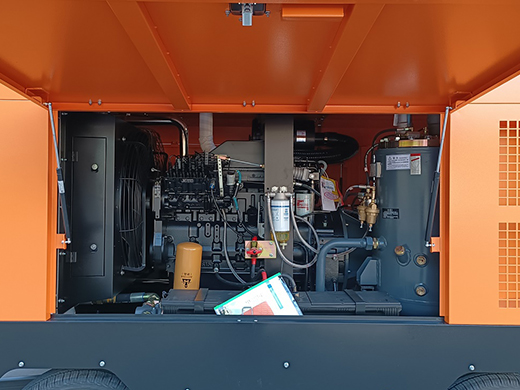

Detailed Images

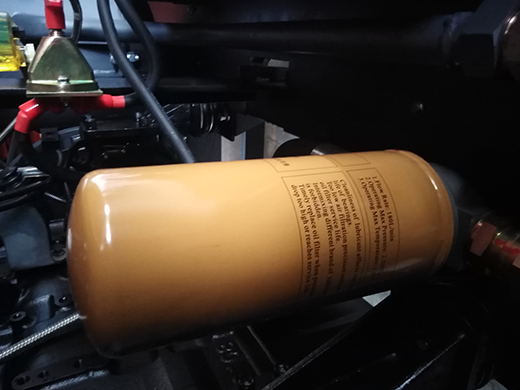

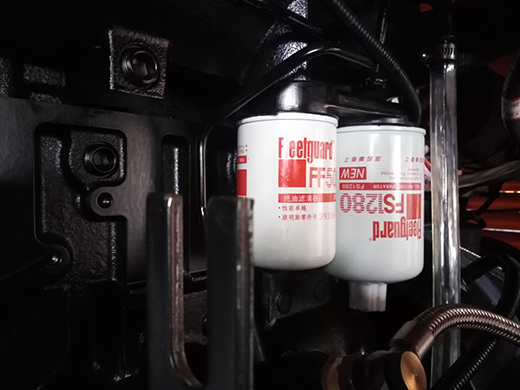

Accessories

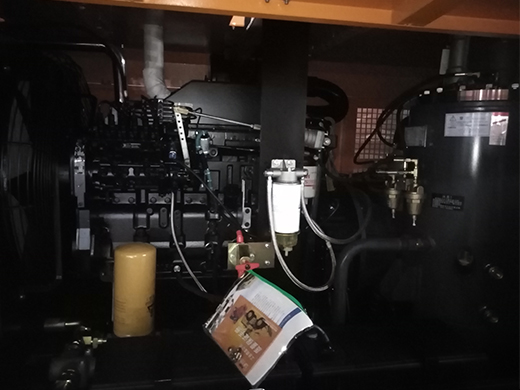

Machine picture
Machine picture
Machine picture
Machine picture
Machine picture
Machine picture
Machine picture
Machine picture
Machine picture
Machine picture
Aplication

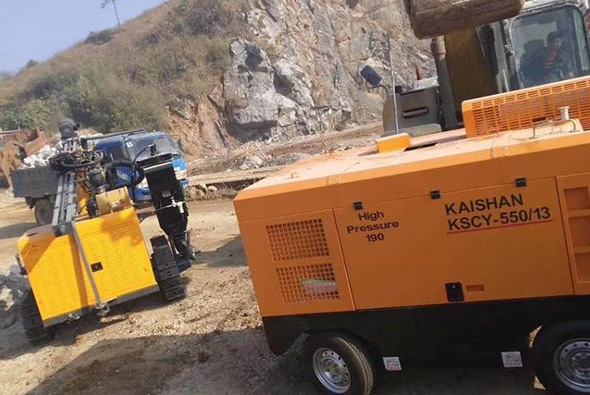

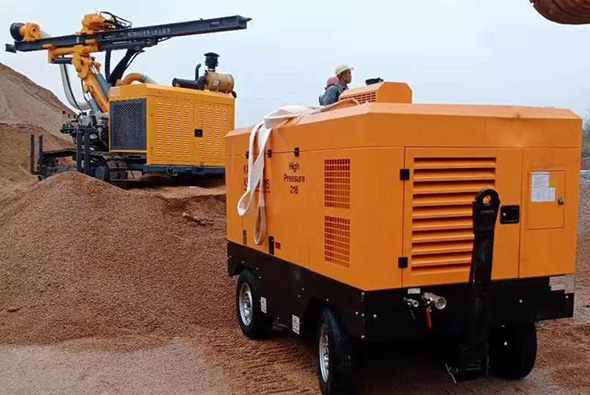

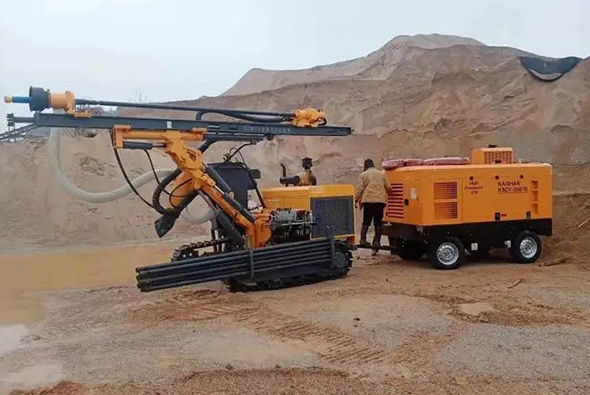

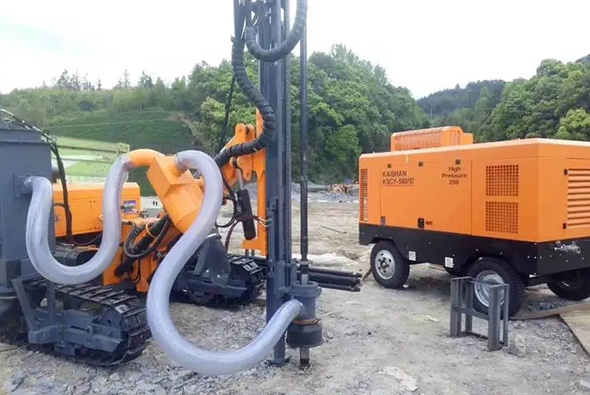

Customer Application Demonstration
Low noise operationSilent type cover design, low noise operation, more environmentalprotection machine design.
SERVICE
After-sale Service
Kaishan group is a professional compressor and drill rig enterprise with over 60 years of history. It is at present the largest air compressor manufacturer in China
Free Maintenance Or Parts Replacement
During the quality guarantee term if any quality problem with the equipment we responsible for free maintenance or parts replacement.
Free Technical Support
We supply a permanent free technical support to all customers.
Integration Testing
Our equipments would through integration testing before delivery, ex factory pass rate would reach 100%. We can also supply you photos to prove it's really assembling in Kaishan factory but not by some small counterfeit workshop
Send Us A Message
If you have any questions or would like tobook a session please contact us.
Most Popular Questions
Kaishan group is a professional compressor and drill rig enterprise with over 60 years of history. It is at present the largest air compressor manufacturer in China
How is the quality of your machine?
We have strict quality control process ensure the our products meet the highest standards.
Are you a trading company or a manufacturer?
We are a factory with more than 10 years of manufacturing experience
How to inspect the goods?
We will test the machine, the whole process can be live or recorded video, if customers have time, you can come to the factory to watch the test process.
Do you have after-sales service?
We have after-sales team in the United States, Southeast Asia, the Middle East, Europe, Africa are stationed year-round, at the same time, we will be sent from the domestic professional maintenance master above to solve the problem.
How about quality assurance?
We have a complete and traceable system of quality accountability, from the purchase of raw materials to the delivery of machines. Every aspect of production is precisely controlled.
How long is your delivery cycle?
Generic models are usually in stock and can take up to 20 working days if produced. Customised products take 40-50 working days. Each machine we test drive before it goes out to the customer to ensure the performance of the product in the hands of the customer.
Related Products

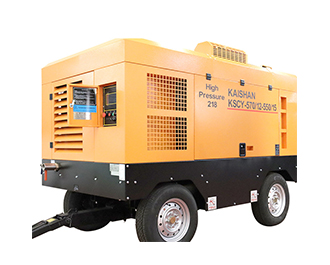

KSCY-570-12
KSCY-570-12
  • Voltage:
    24V
  • Dimension:
    3300*1880*2100mm
  • Weight:
    2400kg
  • Air Consumption:
    16-15 m3/min

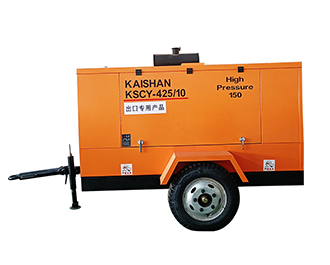

KSCY 425-10
  • Voltage:
    Customer's Requirement
  • Dimension:
    3300*1880*2100mm
  • Weight:
    1880KG
  • Air capacity:
    10m3/min
KSCY 560-15
KSCY 560-15
  • Type:
    Rotary Drilling Rig
  • Dimension:
    3600*1800*2450MM
  • Power Type:
    Diesel
  • Engine:
    YUCHAI Diesel Engine
KSCY 650-20-700-17
  • Voltage:
    12v
  • Dimension:
    4100*1850*1800mm
  • Weight:
    2000kg
  • Motor power:
    110kw

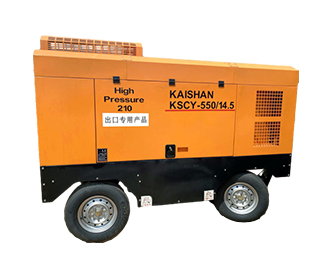

KSCY 550-14.5
