LGCY 18-17
Our single-stage rotary screw airend and rotor is large which allows for bigger bearings, 30%~50% slower rotor speeds results in less power consumption or noise or maintenance cost.
Voltage:
24V
Dimension:
3980*1800*2450mm
Weight:
3400kg
Air delivery:
11-39 m3/min
Introduction
Advantage
Specification
Detailed Images
Applications
Service
Introduction
LGCY 18-17

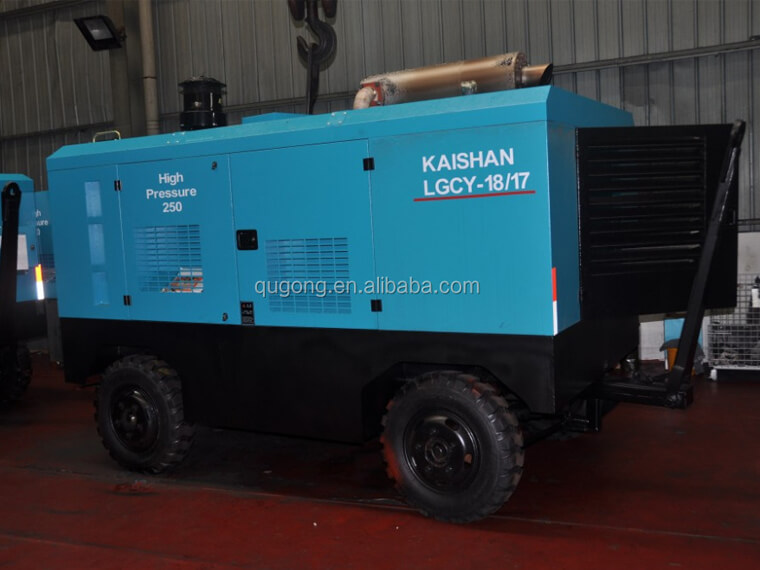

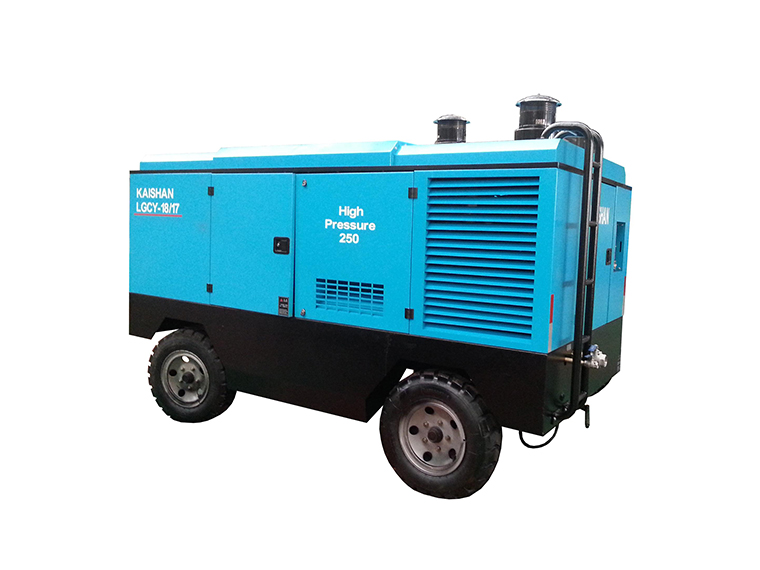

Kaishan LGCY-18/17 Portable Diesel Screw Air Compressor
1、The host: patented type line of large diameter rotor design, the host and the diesel engine through a highly flexible coupling direct connection, no intermediate speed gear, the host speed and diesel engine consistent, higher efficiency, better reliability, longer life.
2、Diesel engine: Cummins, Yuchai and other domestic and foreign brand-name diesel engines, in line with the national Ⅱ emission requirements, strong power, low fuel consumption, with a nationwide after-sales service system, users can get rapid and perfect service.
3、The air volume control system is simple and reliable. According to the size of air consumption, the air intake volume is automatically adjusted from 0 to 100%, while the diesel engine throttle is automatically adjusted to save diesel fuel to the maximum.
4、Microcomputer intelligently monitors the operating parameters of air compressor exhaust pressure, exhaust temperature, diesel engine speed, oil pressure, water temperature, oil tank level, etc., with automatic alarm and shutdown protection function.
5、Multi-stage air filter, suitable for multi-dust working environment; multi-stage fuel filter, suitable for the current situation of domestic oil quality; oversized oil and water cooler, suitable for high temperature and plateau environment.
6、Spacious maintenance and repair door, the parts to be maintained are within reach, maintenance of air filter, oil filter, fuel tank, battery and oil cooler is convenient and easy, reducing downtime.
7、It is easy to move, and can still be moved flexibly under harsh terrain conditions. Each compressor is equipped with lifting rings for safe and convenient lifting and transportation.
1、The host: patented type line of large diameter rotor design, the host and the diesel engine through a highly flexible coupling direct connection, no intermediate speed gear, the host speed and diesel engine consistent, higher efficiency, better reliability, longer life.
2、Diesel engine: Cummins, Yuchai and other domestic and foreign brand-name diesel engines, in line with the national Ⅱ emission requirements, strong power, low fuel consumption, with a nationwide after-sales service system, users can get rapid and perfect service.
3、The air volume control system is simple and reliable. According to the size of air consumption, the air intake volume is automatically adjusted from 0 to 100%, while the diesel engine throttle is automatically adjusted to save diesel fuel to the maximum.
4、Microcomputer intelligently monitors the operating parameters of air compressor exhaust pressure, exhaust temperature, diesel engine speed, oil pressure, water temperature, oil tank level, etc., with automatic alarm and shutdown protection function.
5、Multi-stage air filter, suitable for multi-dust working environment; multi-stage fuel filter, suitable for the current situation of domestic oil quality; oversized oil and water cooler, suitable for high temperature and plateau environment.
6、Spacious maintenance and repair door, the parts to be maintained are within reach, maintenance of air filter, oil filter, fuel tank, battery and oil cooler is convenient and easy, reducing downtime.
7、It is easy to move, and can still be moved flexibly under harsh terrain conditions. Each compressor is equipped with lifting rings for safe and convenient lifting and transportation.
Get A Free Quote
Advantage
Advantage Of The Air Compressor
Six Strong Advantages Focus On Air Compressor Industry
Specification
Technical Parameter
Model of Air Compressor | Exhaust pressure (Mpa) | Exhaust volume (m3/min) | Motor power (HP) | Dimension(L*W*H) | Weight(KG) |
LGCY-5/7 | 0.7 | 5 | Yuchai:50HP | 3240*1760*1850mm | 1300 |
LGCY-5/7R | 0.7 | 5 | Kubota:60HP | 3240*1760*1850mm | 1300 |
LGCY-6/7X | 0.7 | 6 | Xichai:75HP | 3240*1760*1850mm | 1400 |
LGCY-7.5/7X | 0.7 | 7.5 | Xichai:75HP | 3240*1760*1850mm | 1400 |
LGCY-9/7 | 0.7 | 9 | Yuchai:120HP | 2175*1760*1785mm | 1550 |
LGCY-12/10 | 1 | 12 | Yuchai 4 cylinders:160HP | 3300*1880*2100mm | 1880 |
LGCY-10/13 | 1.3 | 10 | Yuchai 4 cylinders:160HP | 3300*1880*2100mm | 1880 |
LGCY-18/17 | 1.7 | 18 | Yuchai:260HP | 3980*1800*2450mm | 3400 |
LGCY-18/17K | 1.7 | 18 | Cummins:260HP | 3980*1800*2450mm | 3400 |
LGCY-22/8K | 0.8 | 22 | Cummins:260HP | 3980*1800*2450mm | 4000 |
LGCY-27/10 | 1 | 27 | Yuchai:340HP | 4600*1950*2600mm | 5000 |
LGCY-27/10K | 1 | 27 | Cummins:325HP | 4600*1950*2600mm | 5000 |
LGCY-32/10 | 1 | 32 | Yuchai:400HP | 4600*1950*2600mm | 5000 |
LGCY-32/10K | 1 | 32 | Cummins:360HP | 4600*1950*2600mm | 5000 |
LGCY-65/4.5 | 0.45 | 65 | Yuchai:550HP | 4500*2350*2380mm | 8500 |
PRODUCT Images

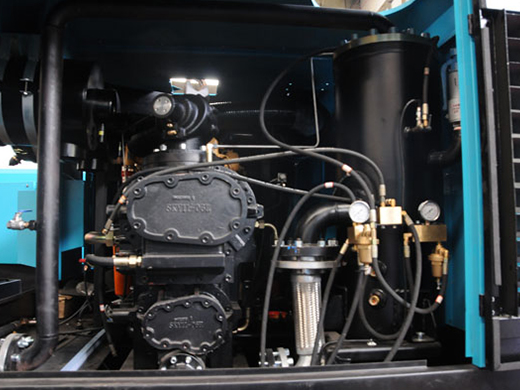

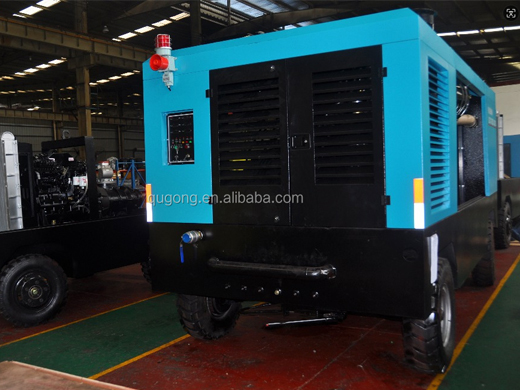

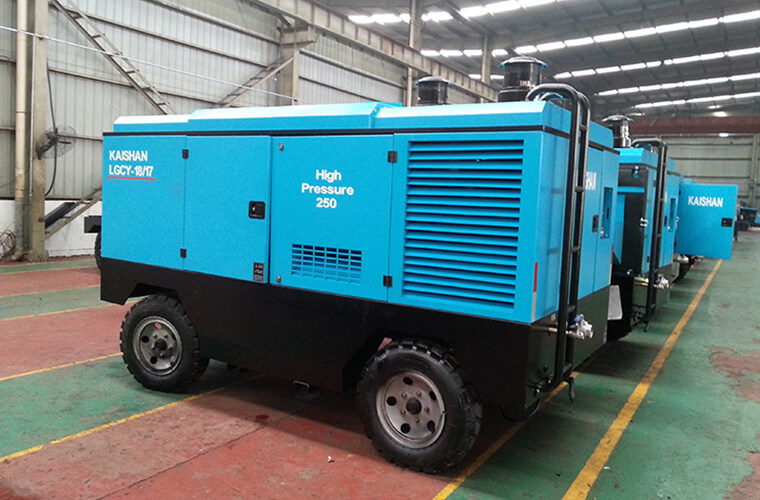

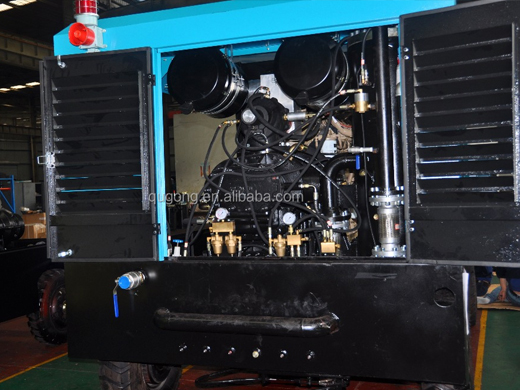

Detailed Images
Kaishan group is a professional compressor and drill rig enterprise with over 60 years of history. It is at present the largest air compressor manufacturer in China
Detailed Images
Accessories
Aplication
Customer Application Demonstration
Low noise operationSilent type cover design, low noise operation, more environmentalprotection machine design.
