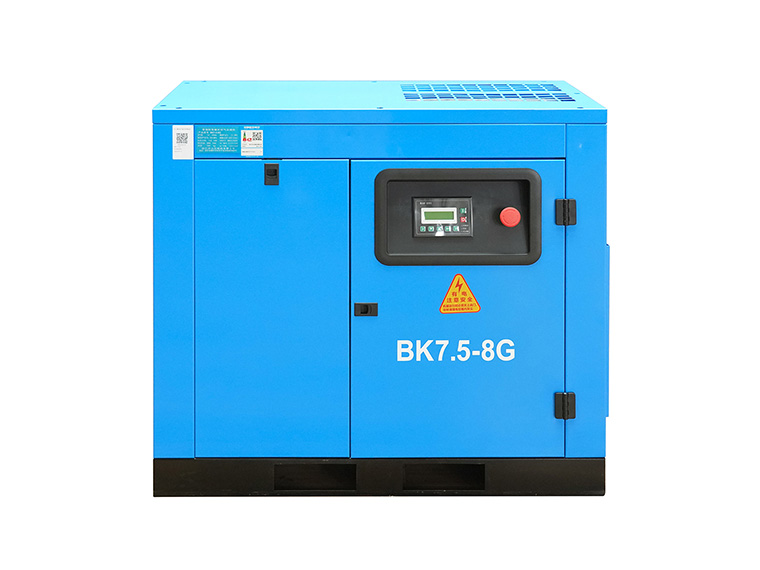

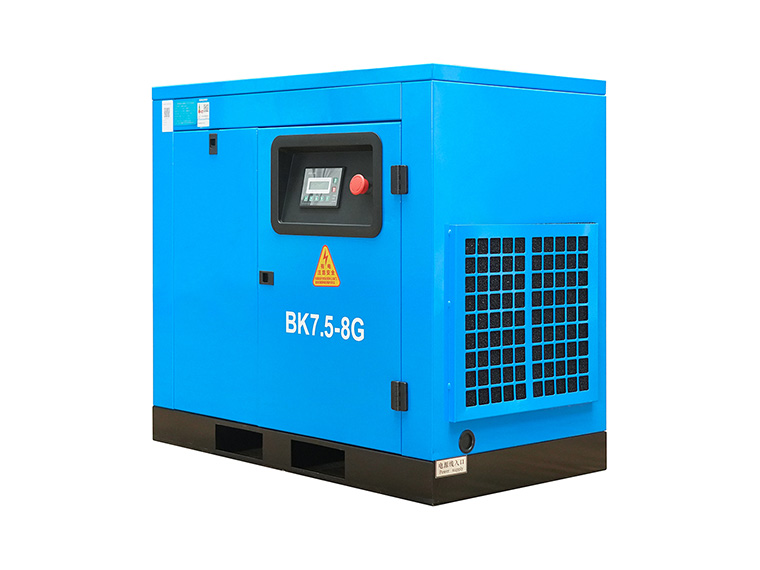

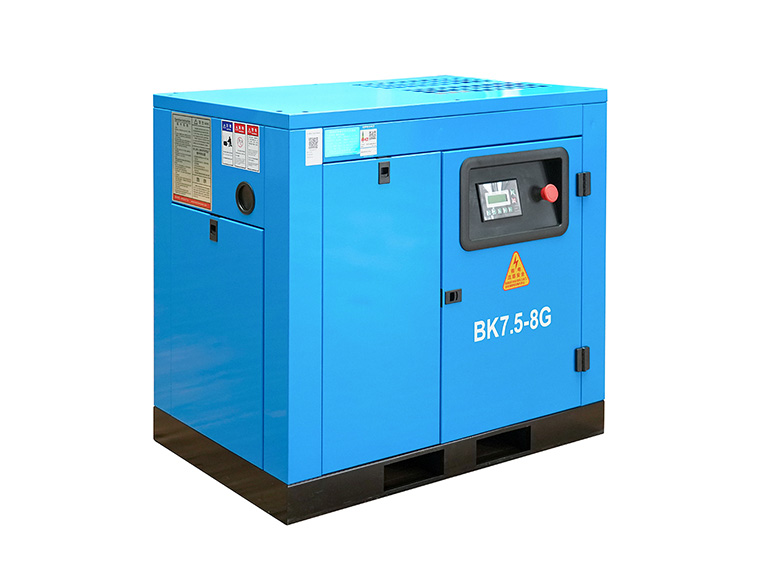

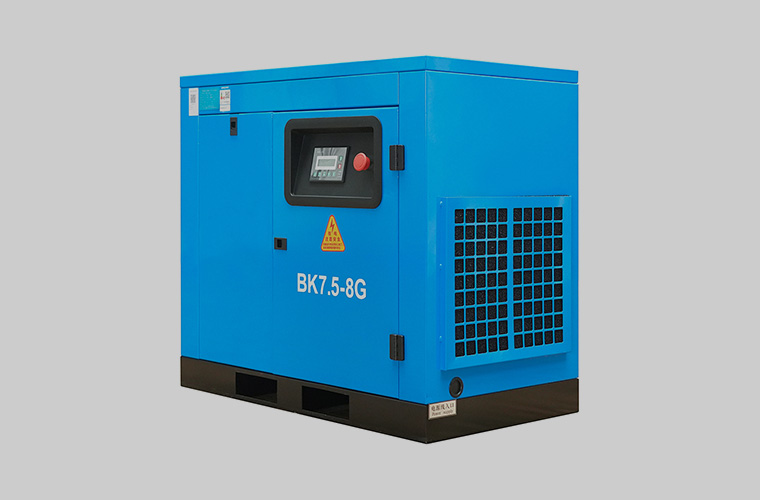

BK7.5-8G
The BK series of screw compressors meets the needs of a wide range of users in the field of low-power, low-priced screw compressors. Less wearing parts, compact structure, good stability.
Weight:
200 KG
Dimension:
800*620*800mm
Cooling System:
Air cooling
Air Tank:
220L
Introduction
Advantage
Specification
Detailed Images
Applications
Service
Introduction
Screw Air Compressor

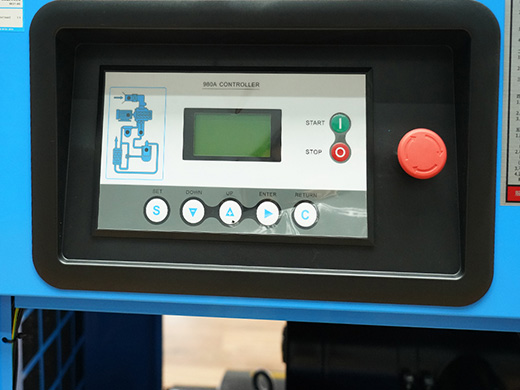

The BK series of screw compressors meets the needs of a wide range of users in the field of low-power, low-priced screw compressors. Less wearing parts, compact structure, good stability. The human-machine interface display control system is easy to operate, and the operating status can be seen at a glance. Equipped with a new generation of low-consumption, high-efficiency motor, starting torque. Built-in oil and gas separation design ensures the effect of oil and gas separation and reduces fuel consumption. Provide full guarantee for product quality from the preliminary design. Good economy, easy maintenance, suitable for small power host. It provides high efficiency, easy maintenance and more economical air system.
Get A Free Quote
Advantage
Advantage Of The Drill
Specification
Technical Parameter
Product model | Exhaust pressure Mpa |
Exhaust volume m3/min |
Motor power KW |
Exhaust connection | Weight KG |
Dimensions MM |
BK7.5-8G | 0.8 | 1.2 | 7.5KW | G3/4 | 200 | 800*620*800mm |
BK7.5G-8 | 0.8 | 1.2 | 7.5KW | G3/4 | 200 | 880*510*800mm |
BK11-8G | 0.8 | 1.7 | 11KW | G1 | 280 | 1000*670*1090mm |
BK15-8G | 0.8 | 2.4 | 15KW | G1 | 280 | 1000*670*1090mm |
BK15-8 | 0.8 | 2.4 | 15KW | G1 | 270 | 700*670*1250mm |
BK15-10 | 1 | 2.2 | 15KW | G1 | 270 | 700*670*1250mm |
BK15-13 | 1.3 | 1.7 | 15KW | G1 | 270 | 700*670*1250mm |
BK22-8G | 0.8 | 3.6 | 22KW | G1 | 390 | 1200*800*1120mm |
BK22-10G | 1 | 3.2 | 22KW | G1 | 390 | 1200*800*1120mm |
BK22-13G | 1.3 | 2.7 | 22KW | G1 | 390 | 1200*800*1120mm |
BK30-8G | 0.8 | 5.0 | 30KW | G1 1/2 | 470 | 1340*850*1280mm |
BK30-10G | 1 | 4.4 | 30KW | G1 1/2 | 470 | 1340*850*1280mm |
BK30-13G | 1.3 | 3.6 | 30KW | G1 1/2 | 470 | 1340*850*1280mm |
BK37-8G | 0.8 | 6 | 37KW | G1 1/2 | 560 | 1340*850*1280mm |
BK37-10G | 1 | 5.4 | 37KW | G1 1/2 | 560 | 1340*850*1280mm |
BK37-13G | 1.3 | 4.6 | 37KW | G1 1/2 | 560 | 1340*850*1280mm |
BK45-8G | 0.8 | 7.1 | 45KW | G1 1/2 | 720 | 1480*1030*1340mm |
BK45-10G | 1 | 6.2 | 45KW | G1 1/2 | 720 | 1480*1030*1340mm |
BK45-13G | 1.3 | 5.6 | 45KW | G1 1/2 | 720 | 1480*1030*1340mm |

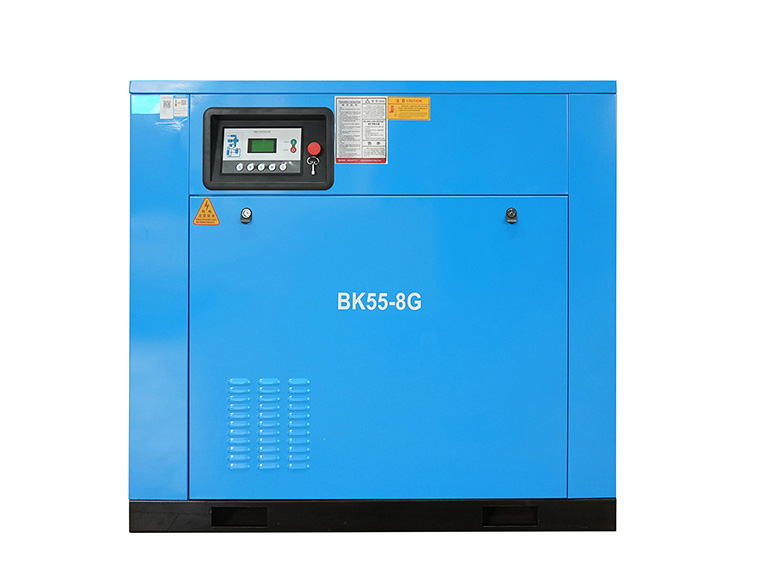

BK55-8G | 0.8 | 10 | 55KW | G1 1/2 | 790 | 1480*1030*1340mm |
BK55-10G | 1 | 7.2 | 55KW | G1 1/2 | 790 | 1480*1030*1340mm |
BK55-13G | 1.3 | 6.2 | 55KW | G1 1/2 | 790 | 1480*1030*1340mm |
BK75-8G | 0.8 | 13 | 75KW | G2 | 1200 | 1800*1190*1710mm |
BK90-8G | 0.8 | 16 | 90KW | G2 | 1240 | 1800*1190*1710mm |
BK110-8T | 0.8 | 21 | 110KW | DN65 | 1680 | 2100*1230*1730mm |
BK110-8G | 0.8 | 21 | 110KW | DN65 | 1680 | 2100*1230*1730mm |
BK132-8T | 0.8 | 24 | 132KW | DN65 | 1670 | 2100*1230*1730mm |
BK132-8G | 0.8 | 24 | 132KW | DN65 | 1750 | 2100*1230*1730mm |
KS175A-8F | 0.8 | 24 | 132KW | DN65 | 1470 | 1880*1230*1670mm |
KS150-8-11 | 0.8 | 22 | 110KW | DN65 | 1950 | 2100*1230*1730mm |
KS175-8-I1 | 0.8 | 25 | 132KW | DN65 | 1990 | 2100*1230*1730mm |
PRODUCT Images

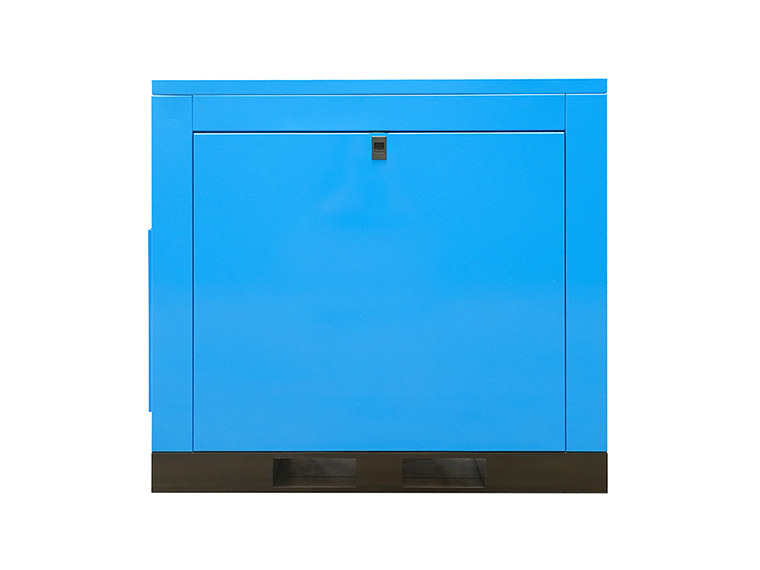

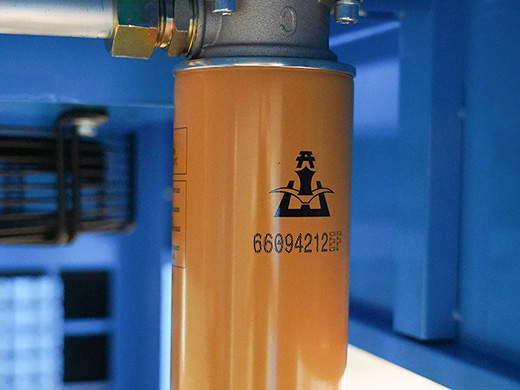

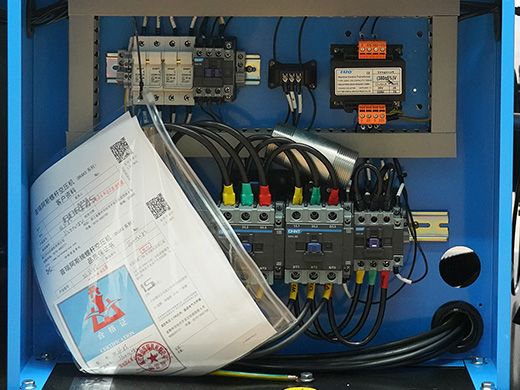

Detailed Images
Kaishan group is a professional compressor and drill rig enterprise with over 60 years of history. It is at present the largest air compressor manufacturer in China

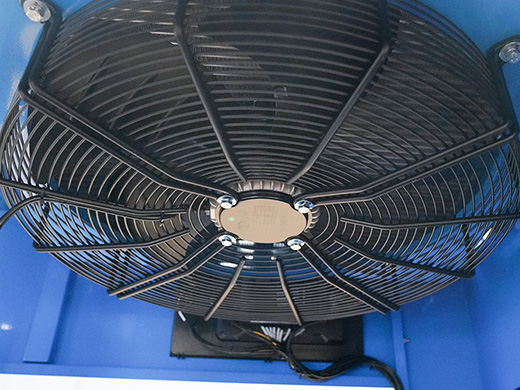

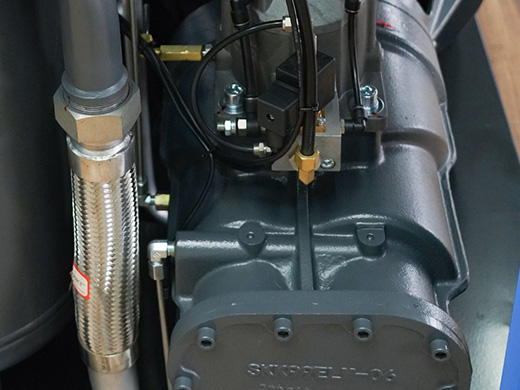

Detailed Images
Accessories
Aplication
Customer Application Demonstration
SERVICE
After-sale Service
Kaishan group is a professional compressor and drill rig enterprise with over 60 years
of history. It is at present the largest air compressor manufacturer in China
Free Maintenance Or Parts Replacement
During the quality guarantee term if any quality problem with the equipment we
responsible for free maintenance or parts replacement.
Free Technical Support
We supply a permanent free technical support to all customers.
Integration Testing
Our equipments would through integration testing before delivery, ex factory
pass rate would reach 100%. We can also supply you photos to prove it's really
assembling in Kaishan factory but not by some small counterfeit workshop
Send Us A Message
If you have any questions or would like tobook a session please contact us.
Most Popular Questions
Kaishan group is a professional compressor and drill rig enterprise with over 60 years
of history. It is at present the
largest air compressor manufacturer in China
How is the quality of your machine?
We have strict quality control process ensure the our products meet the highest standards.
Are you a trading company or a manufacturer?
We are a factory with more than 10 years of manufacturing experience
How to inspect the goods?
We will test the machine, the whole process can be live or recorded video, if customers have time, you can come to the factory to watch the test process.
Do you have after-sales service?
We have after-sales team in the United States, Southeast Asia, the Middle East, Europe, Africa are stationed year-round, at the same time, we will be sent from the domestic professional maintenance master above to solve the problem.
How about quality assurance?
We have a complete and traceable system of quality accountability, from the purchase of raw materials to the delivery of machines. Every aspect of production is precisely controlled.
How long is your delivery cycle?
Generic models are usually in stock and can take up to 20 working days if produced. Customised products take 40-50 working days. Each machine we test drive before it goes out to the customer to ensure the performance of the product in the hands of the customer.
