KG420S
KG420/KG420H Surface DTH Drilling Rig is with Yuchai diesel engine(GB 3),it meets the national requirements of Emissions and environment
Weight:
5800 KG
Warranty:
6 Months
Drilling Diameter:
90-152mm
Drilling Depth:
Max.25m
Share With:

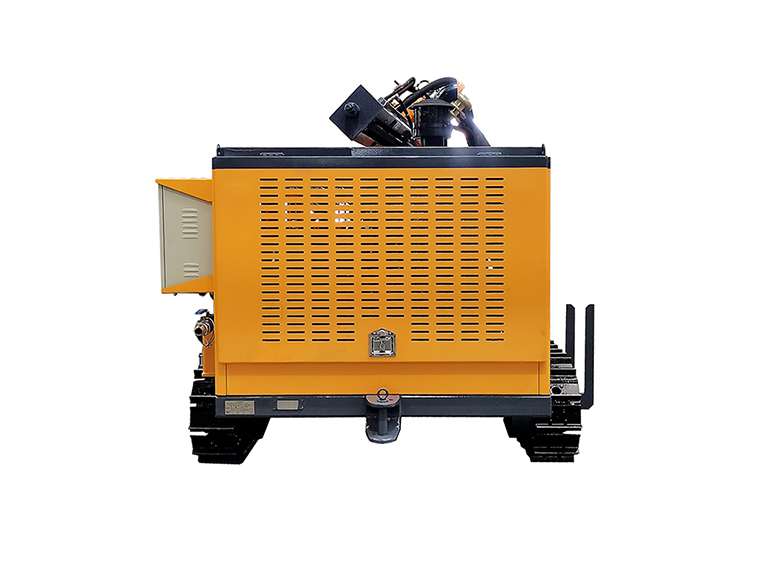

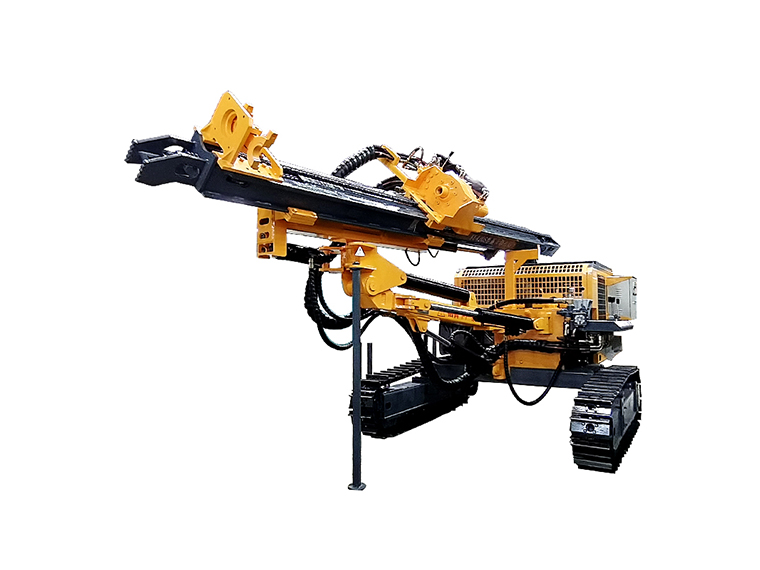

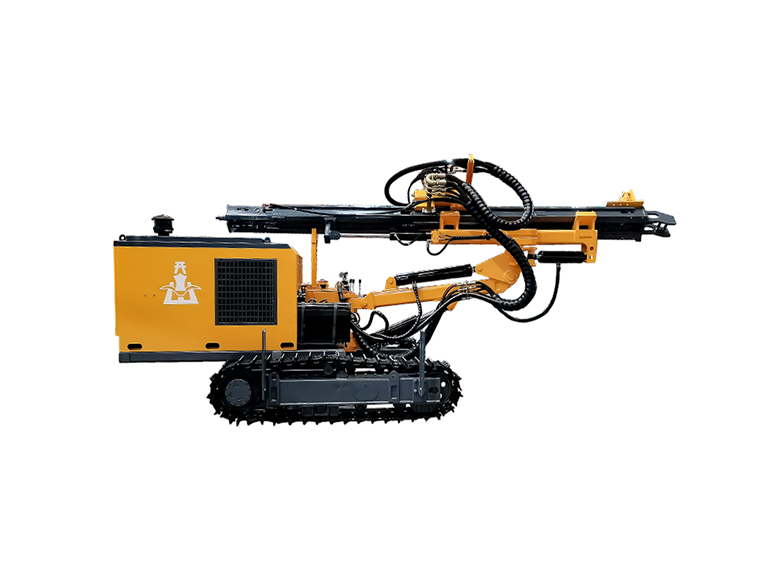

KG420S
KG420S
KG420S
KG420S
Introduction
Advantage
Specification
Detailed Images
Applications
Service
Introduction

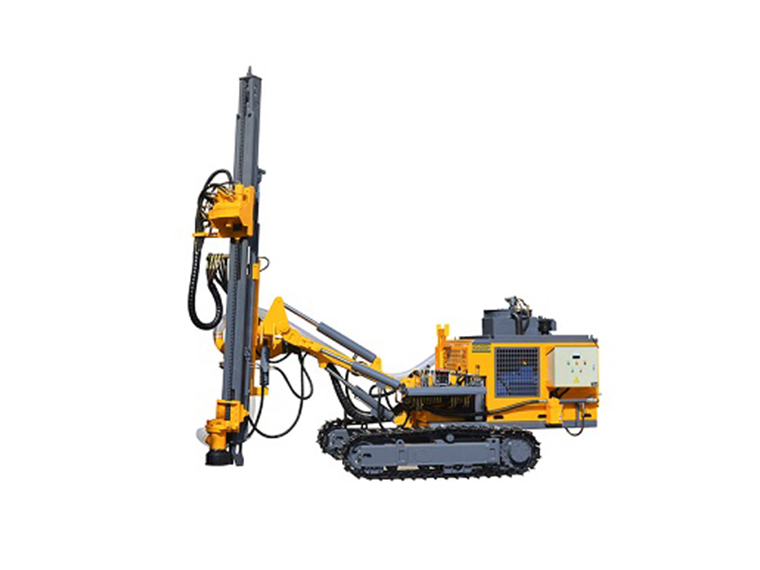

KG420/KG420H Surface DTH Drilling Rig
KG420/KG420H Surface DTH Drilling Rig is with Yuchai diesel engine(GB 3),it meets the national requirements of Emissions and environment,it is Designed and developed based on YC726 platform,it is with piston travel motor,improve the working pressure and climbing capacity.

KG420 is assembled with dust collector,it is suitable for environmental standards.
Get A Free Quote
Advantage
Advantage Of The Drill
Source Manufacturer
Professional Team
Rich Experience
Excellent Technology
Fast Delivery
All in Stock
Specification
Technical Parameter
Technical Parameters of KG420/KG420H Surface DTH Drilling Rig
Model KG420 KG420H
Weight 5200kg 5700kg
Dimension 6150*2350*2700mm 6150*2350*2700mm
Drilling hardness f=6-20
Drilling diameter Φ90-115mm
Economic drilling depth 25m
Rotation speed 120r/min
Rotary torque 2000N·m
Lifting force 40KN
Propulsion mode Hydraulic Cylinders - Chain
Feed length 3980mm
Travel speed 0-2.5Km/h
Climbing capacity ≤30°
Ground clearance 280mm
Feed pitch angle down 135° up50°
Feed swing angle left 100° right45°
boom pitch angle down 50° up25°
boom swing angle left 44° right45°
Feed extension 900mm
Diesel engine Yuchai YCD4R23T8-80(59KW/2400r/min)
Drill rod 64*3m
Toe-hole drilling Min.350mm,Max.2840mm
PRODUCT Images

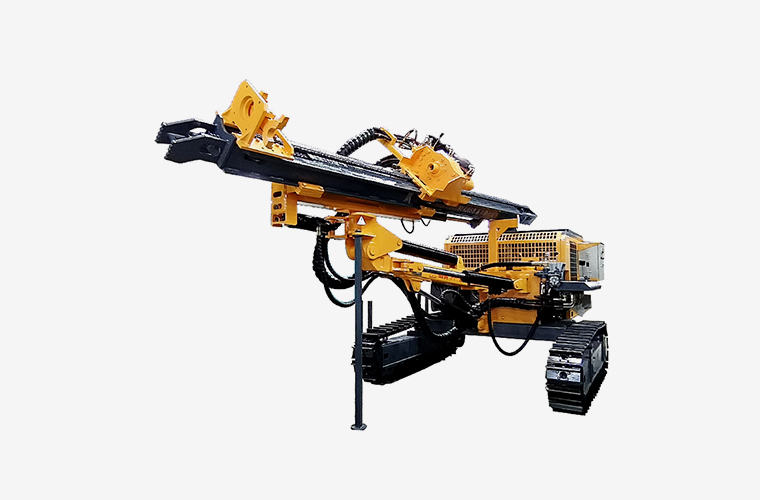

Detailed Images
Kaishan group is a professional compressor and drill rig enterprise with over 60 years of history. It is at present the largest air compressor manufacturer in China

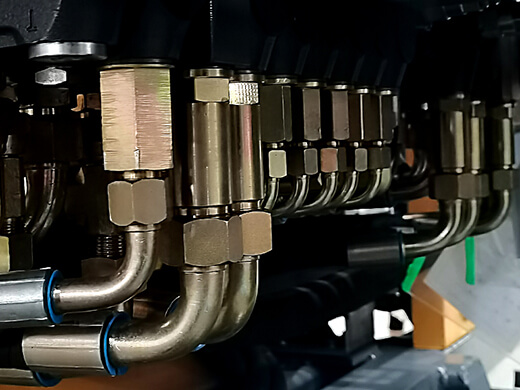

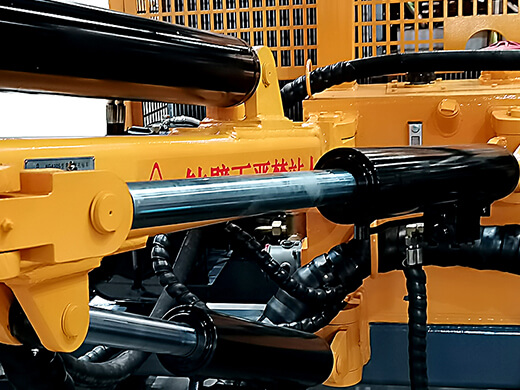

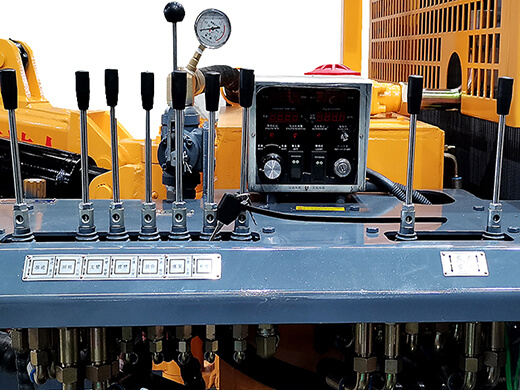

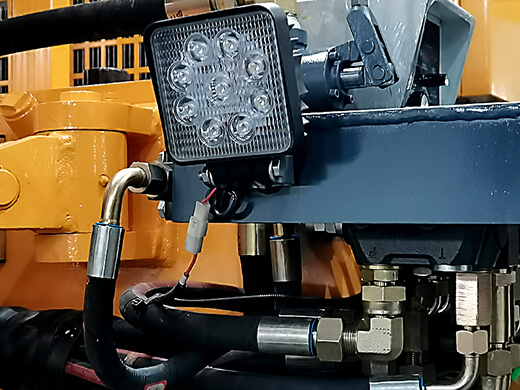

Detailed Images
Accessories
Machine picture
Machine picture
Machine picture
Machine picture
Machine picture
Machine picture
Machine picture
Machine picture
Machine picture
Machine picture
Aplication
Customer Application Demonstration
SERVICE
After-sale Service
Kaishan group is a professional compressor and drill rig enterprise with over 60 years of history. It is at present the largest air compressor manufacturer in China
Free Maintenance Or Parts Replacement
During the quality guarantee term if any quality problem with the equipment we responsible for free maintenance or parts replacement.
Free Technical Support
We supply a permanent free technical support to all customers.
Integration Testing
Our equipments would through integration testing before delivery, ex factory pass rate would reach 100%. We can also supply you photos to prove it's really assembling in Kaishan factory but not by some small counterfeit workshop
Send Us A Message
If you have any questions or would like tobook a session please contact us.
Most Popular Questions
Kaishan group is a professional compressor and drill rig enterprise with over 60 years of history. It is at present the largest air compressor manufacturer in China
How is the quality of your machine?
We have strict quality control process ensure the our products meet the highest standards.
Are you a trading company or a manufacturer?
We are a factory with more than 10 years of manufacturing experience
How to inspect the goods?
We will test the machine, the whole process can be live or recorded video, if customers have time, you can come to the factory to watch the test process.
Do you have after-sales service?
We have after-sales team in the United States, Southeast Asia, the Middle East, Europe, Africa are stationed year-round, at the same time, we will be sent from the domestic professional maintenance master above to solve the problem.
How about quality assurance?
We have a complete and traceable system of quality accountability, from the purchase of raw materials to the delivery of machines. Every aspect of production is precisely controlled.
How long is your delivery cycle?
Generic models are usually in stock and can take up to 20 working days if produced. Customised products take 40-50 working days. Each machine we test drive before it goes out to the customer to ensure the performance of the product in the hands of the customer.
Related Products

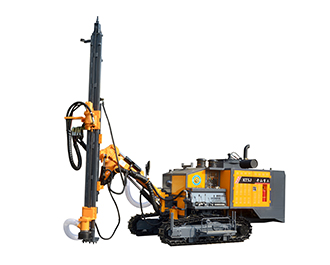

KT5J
