KG430
The KG430/KG430H down the hole drill rig for open use is an improved device in compliance with national regulations on environmental protection.
Product name:
KG430H DTH Drill Rig
Outer dimensions:
6300*2400*2700mm
Drilling hardness:
f=6-20
Rotary speed:
0-90 rpm
Introduction
Advantage
Specification
Detailed Images
Applications
Service
Introduction

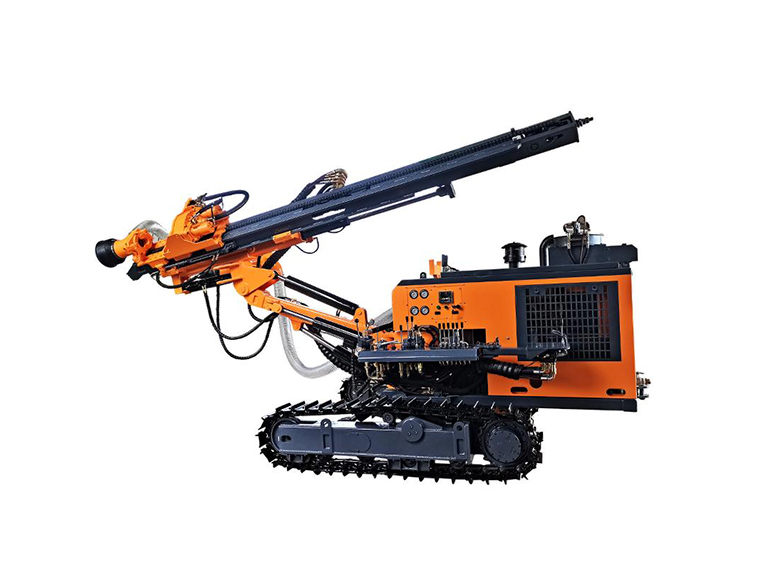

KG430/KG430H Surface DTH Drilling Rig

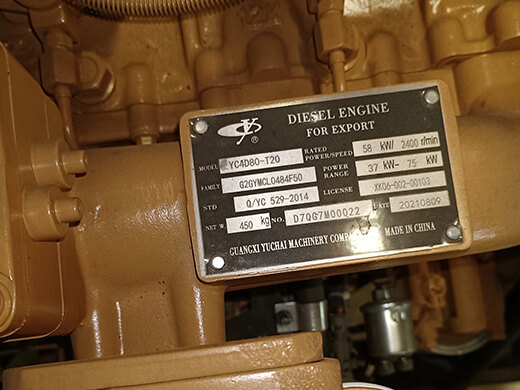

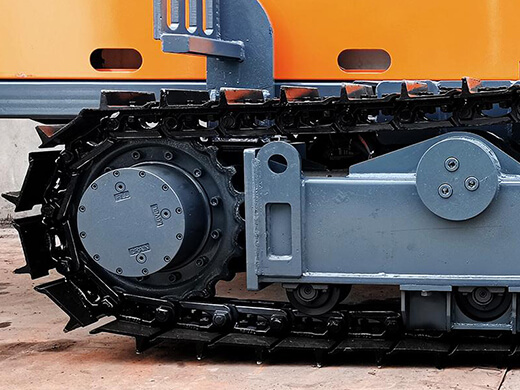

The KG430/KG430H down the hole drill rig for open use is an improved device in compliance with national regulations on environmental protection. Equipped with Yuchai engine(China III), the drill rig meets national standards for emissions and environment. The tramming motor of plunger piston and four-wheel drive improve the working pressure and climbing capacity. The expanded pitch and lifting-arm hydraulic cylinder enable it to meet the requirements of limiting position use. Meanwhile, the hydraulic system is improved, thereby proving increased system flow and rotary speed. The hydraulic cylinder has been optimized, thus making it more reliable. The guide rail is installed in an inclined way, making operations and observations easier. The thickened profile is used for the housing; and the additional ring makes handling and lifting convenient.

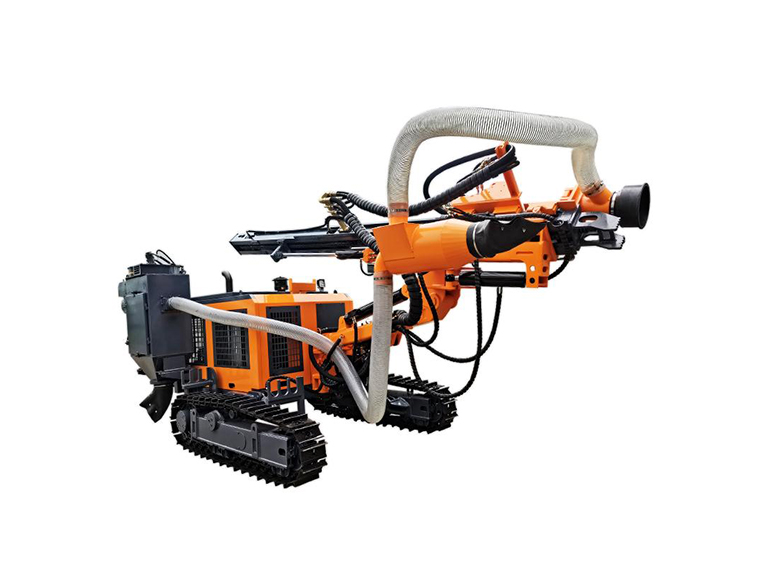

The KG430H down the hole drill rig for open use is equipped with dust collector, thus making operation more environment-friendly and reliable.
The KG430H down the hole drill rig for open use is equipped with dust collector, thus making operation more environment-friendly and reliable.
Get A Free Quote
Advantage
Advantage Of The Drill
Specification
Technical Parameter
Model | KG430 | KG430H |
Weight | 5250 KG | 5700 KG |
Outer dimension | 6300*2250*2700mm | 6300*2400*2700mm |
Drilling diameter | 90-152 mm | |
Economical drilling depth | 25 m | |
Rotary torque | 5000 N.m(Max) | |
Method of feed | Oil cylinder + roller chain | |
DTH Hammer | 4"(inch) |
PRODUCT Images

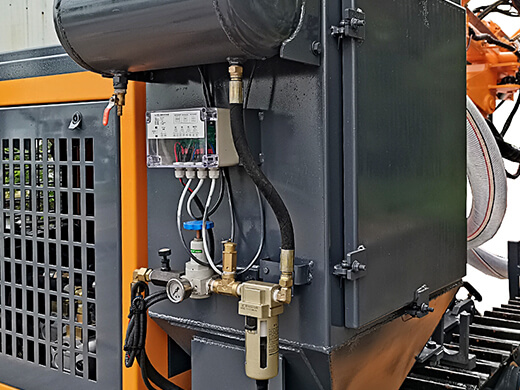

Detailed Images
