KG726
The KG726III/KG726HIII down the hole drill rig for open use is an improved device in compliance with national regulations on environmental protection.
Weight:
4400 KG
Drilling Diameter:
90-115mm
Drilling Depth:
Max.25m
Ground clearance:
350 mm
Introduction
Advantage
Specification
Detailed Images
Applications
Service
Introduction

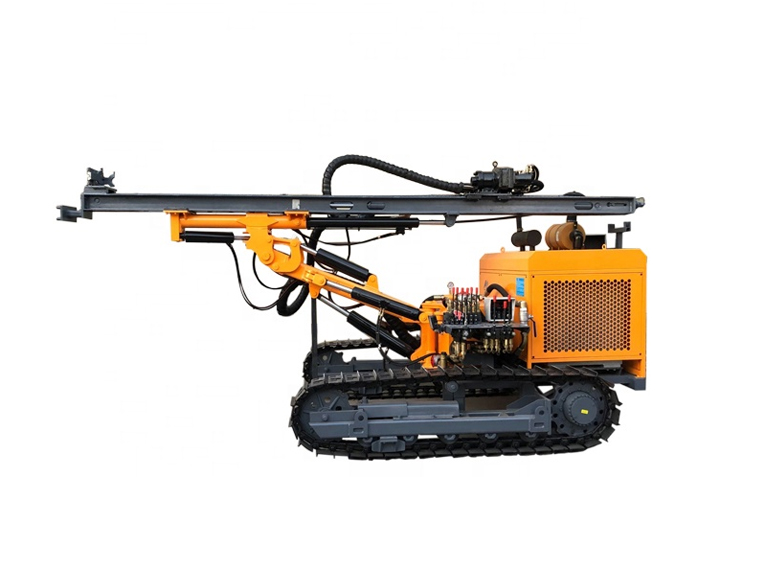

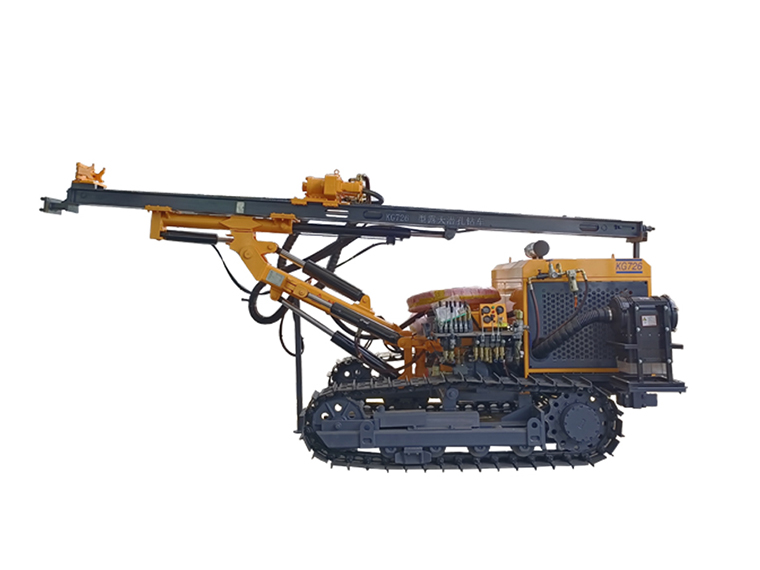

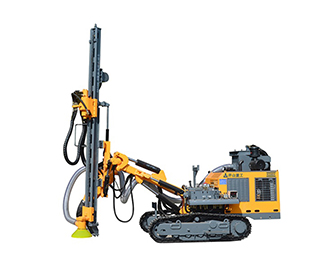

Kg726III/Kg726HIII Down The Hole Drill Rig
The KG726III/KG726HIII down the hole drill rig for open use is an improved device in compliance with national regulations on environmental protection. Equipped with the Yuchai engine, the drill rig meets national standards for emissions and environment. The tramming motor of plunger piston and four-wheel drive improve the working pressure and climbing capacity. The expanded pitch and lifting-arm hydraulic cylinder enable it to meet the requirements of limiting position use. Meanwhile. the hydraulic system is improved, thereby proving increased system flow and rotary speed. The hydraulic cylinder has been optimized. thus making it more reliable. The guide rail is installed in an inclined way, making operations and observations easier. The thickened profile is used for the housing; and the additional ring makes handling and lifting convenient.

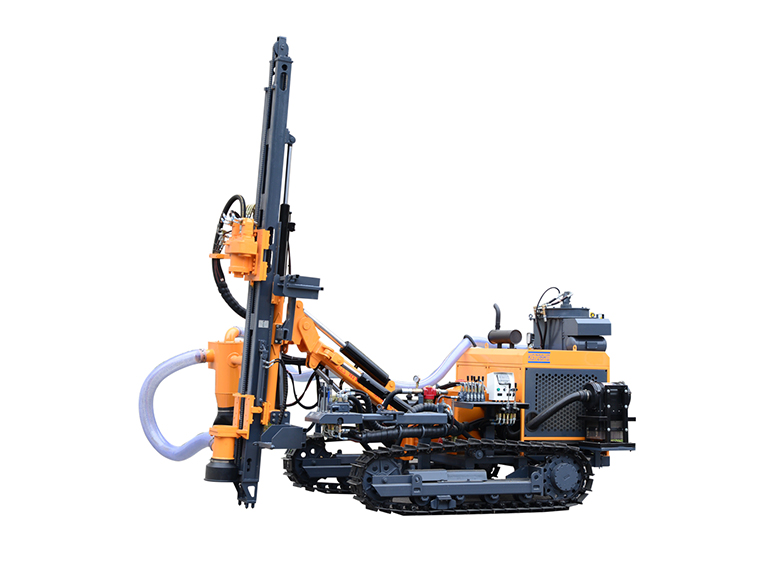

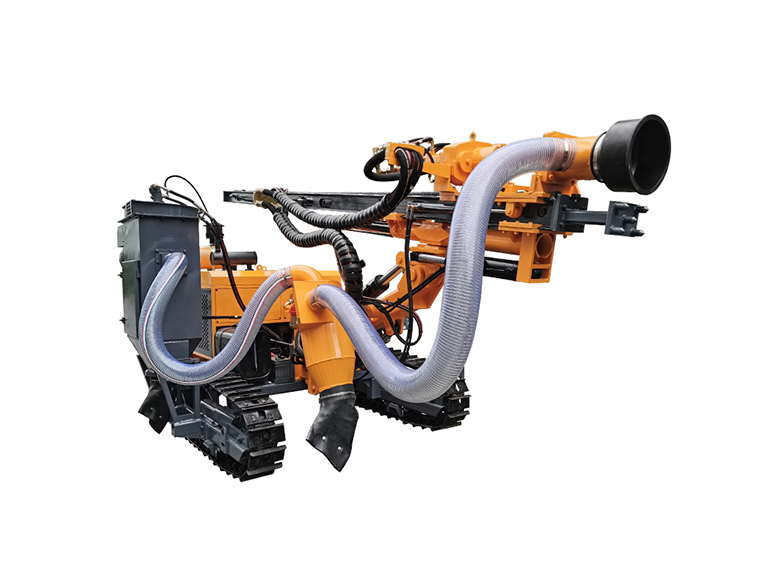

The KG726HIII down the hole drill rig for open use is equipped with a dust collector, thus making operation more environment-friendly and reliable.
The KG726HIII down the hole drill rig for open use is equipped with a dust collector, thus making operation more environment-friendly and reliable.
Get A Free Quote
Advantage
Advantage Of The Drill
Source Manufacturer
Professional Team
Rich Experience
Excellent Technology
Fast Delivery
All in Stock
Specification
Technical Parameter
| Model of drill rig | KG726III | KG726HIII |
| Weight of complete machine | 4200KG | 4400KG |
| Outer dimensions | 5600*2400*2300mm | 5600*2600*2300mm |
| Drilling hardness | f=6-20 | |
| Drilling diameter | Φ90-115mm | |
| Depth of economical drilling | 25m | |
| Rotary speed | 0-120rpm | |
| Rotary torque (Max) | 2000N.m(Max) | |
| Lifting force | 18KN | |
| Method of Feed | Oil cylinder+leaf chain | |
| Feed stroke | 3780mm | |
| Traveling speed | 0-2.5Km/h | |
| Climbing capacity | ≤30° | |
| Ground clearance | 350mm | |
| The tilt angle of the Beam | Down: 135°, up:50°, total: 185° | |
| Swing angle of the boom | Left: 100°,right:45°, total: 145° | |
| Pitch angle of drill boom | Down: 50°, up:25°, total: 75° | |
| Swing angle of drill boom | Left: 44°,right:45°, total: 89° | |
| Compensation length of the beam | 900mm | |

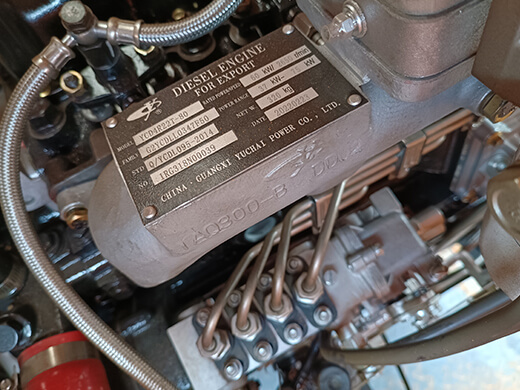

| Supporting power | Yuchai YCD4R23T8-80 (59KW / 2400r / min) | |
| DTH hammer | M30 | |
| Drilling rod | Φ64 * 3m | |
| Air consumption | 9-17m³/min | |
| Maximum height of the horizontal hole | 2750mm | |
| Minimum height of the horizontal hole | 350mm |
PRODUCT Images

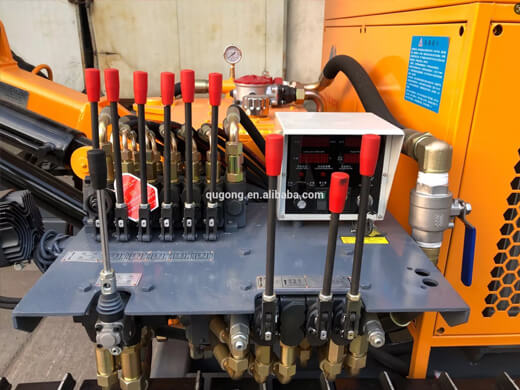

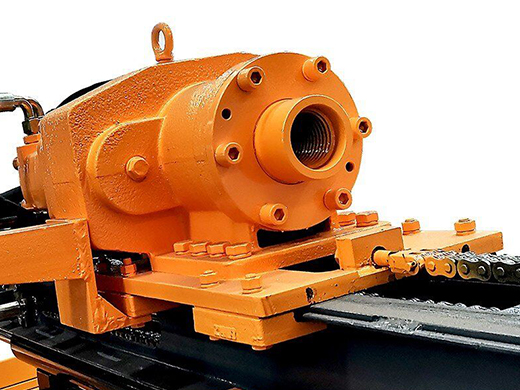

Detailed Images
Kaishan group is a professional compressor and drill rig enterprise with over 60 years of history. It is at present the largest air compressor manufacturer in China
Detailed Images

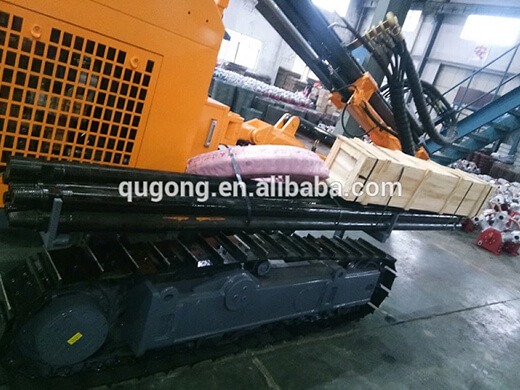

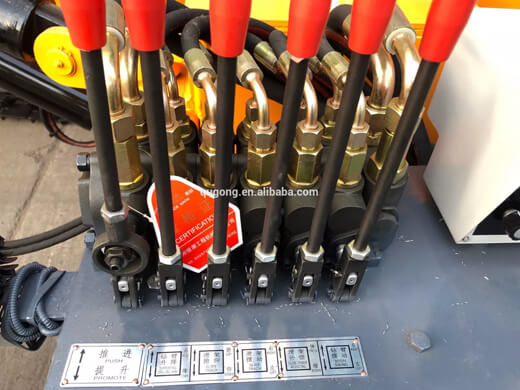

Accessories

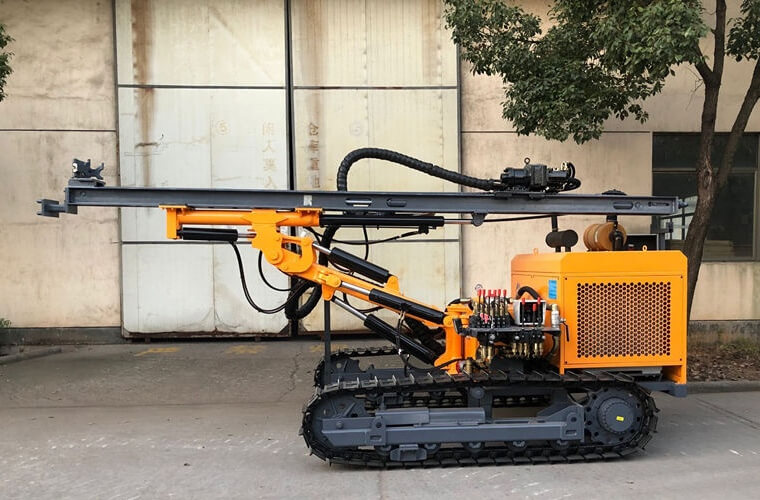

Machine picture
Machine picture
Machine picture
Machine picture
Machine picture
Aplication
Customer Application Demonstration
SERVICE
After-sale Service
Kaishan group is a professional compressor and drill rig enterprise with over 60 years
of history. It is at present the largest air compressor manufacturer in China
Free Maintenance Or Parts Replacement
During the quality guarantee term if any quality problem with the equipment we
responsible for free maintenance or parts replacement.
Free Technical Support
We supply a permanent free technical support to all customers.
Integration Testing
Our equipments would through integration testing before delivery, ex factory
pass rate would reach 100%. We can also supply you photos to prove it's really
assembling in Kaishan factory but not by some small counterfeit workshop
Send Us A Message
If you have any questions or would like tobook a session please contact us.
Most Popular Questions
Kaishan group is a professional compressor and drill rig enterprise with over 60 years
of history. It is at present the
largest air compressor manufacturer in China
How is the quality of your machine?
We have strict quality control process ensure the our products meet the highest standards.
Are you a trading company or a manufacturer?
We are a factory with more than 10 years of manufacturing experience
How to inspect the goods?
We will test the machine, the whole process can be live or recorded video, if customers have time, you can come to the factory to watch the test process.
Do you have after-sales service?
We have after-sales team in the United States, Southeast Asia, the Middle East, Europe, Africa are stationed year-round, at the same time, we will be sent from the domestic professional maintenance master above to solve the problem.
How about quality assurance?
We have a complete and traceable system of quality accountability, from the purchase of raw materials to the delivery of machines. Every aspect of production is precisely controlled.
How long is your delivery cycle?
Generic models are usually in stock and can take up to 20 working days if produced. Customised products take 40-50 working days. Each machine we test drive before it goes out to the customer to ensure the performance of the product in the hands of the customer.
Related Products

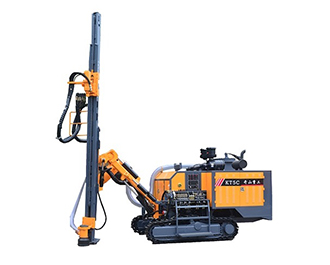

KT5C
-
Weight:4500 KG
-
Drilling Diameter:80-105mm
-
Drilling Depth:Max.25m
-
Size:6050x2360x2700 mm
KG590
-
Weight:6500 KG
-
Drilling Diameter:105-152mm
-
Drilling Depth:Max.25m
-
Dimension:6800*2200*2850mm

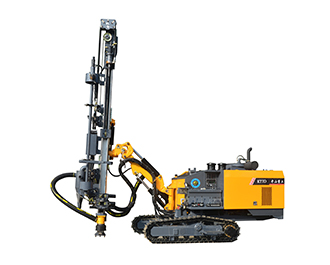

KT7D
-
Weight:11000 KG
-
Dimension:8000*2300*2700 mm
-
Drilling Diameter:115-146 mm
-
Drilling Depth:24 m
KT9C
-
Weight:12000 KG
-
Dimension:8150*2260*2950(mm)
-
Diameter of hole:115~165mm
-
Power:265KW

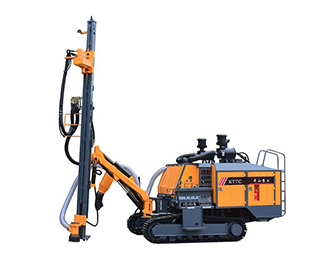

KT7C
-
