KT12
KT12 integrated DTH drilling rig takes Cummins Guosan diesel engine as the single power, and simultaneously drives the screw compression system and the hydraulic transmission system by means of output at both ends.
Weight:
15500 KG
Dimension:
9100*2520*3600mm
Drilling Diameter:
100-140mm
Drilling Depth:
32m
Introduction
Advantage
Specification
Detailed Images
Applications
Service
Introduction

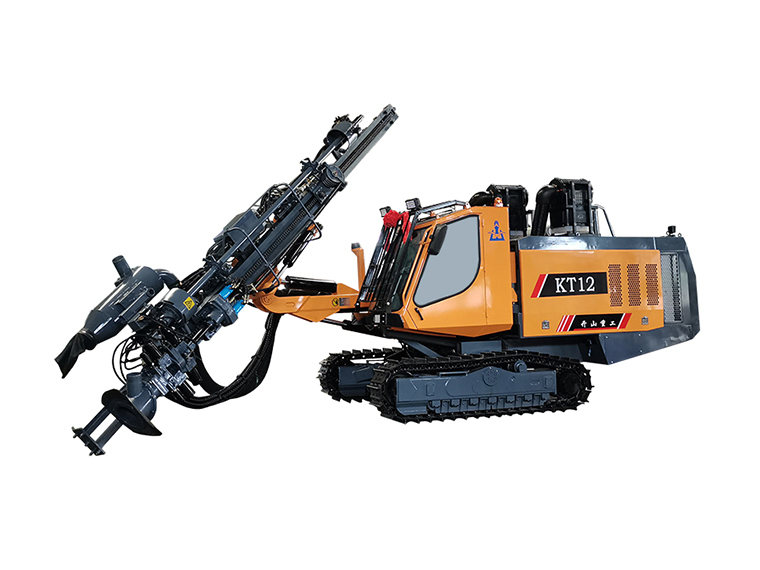

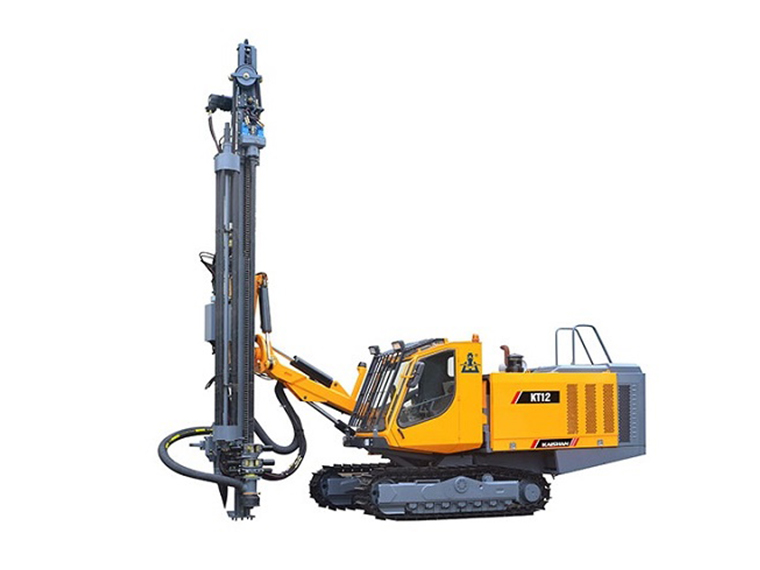

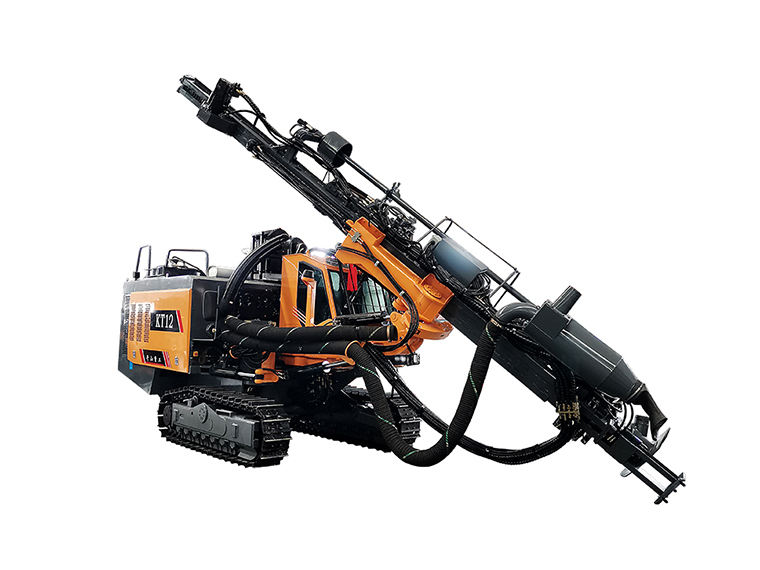

KT12 DTH drilling rig
KT12 blasting drilling rig for large open pit mine energy-saving efficient, safe environmental protection, flexible and convenient operation, stable performance, etc
1. The drilling rig is equipped with screw air compressor and adopts the middle air pressure pneumatic impact. The drilling rig is with high efficiency, low energy consumption.
2. The drilling rig is equipped with hydraulic dry integrator to collect dust and reduces the pollution of the environment.
3. The drilling rig is equipped with hydraulic manipulator, the drill pipe warehouse which disassembles the drill pipe and the floating joint which protects thread of drill pipe .One can disassemble the drill pipe.
4. Air conditioning cab provides comfortable working environment and automatic control ant-jamming valve to reduce the rate of jamming.
1. The drilling rig is equipped with screw air compressor and adopts the middle air pressure pneumatic impact. The drilling rig is with high efficiency, low energy consumption.
2. The drilling rig is equipped with hydraulic dry integrator to collect dust and reduces the pollution of the environment.
3. The drilling rig is equipped with hydraulic manipulator, the drill pipe warehouse which disassembles the drill pipe and the floating joint which protects thread of drill pipe .One can disassemble the drill pipe.
4. Air conditioning cab provides comfortable working environment and automatic control ant-jamming valve to reduce the rate of jamming.
Get A Free Quote
Advantage
Advantage Of The Drill
Source Manufacturer
Professional Team
Rich Experience
Excellent Technology
Fast Delivery
All in Stock
Specification
Technical Parameter
| Transport dimensions | 9830*2580*3320mm |
| Weight | 17500Kg |
| Rock hardness | f=6-20 |
| Drilling diameter | 115-152mm |
| Ground clearance | 420mm |
| Leveling angle of track | 10°up, 10°down |
| Travelling speed | 0-3Km/h |
| Climbing capacity | 25° |
| Traction | 120KN |
| Torque | 3450Nm |
| Rotation speed | 0-100rpm |
| Lifting angle of drill boom | Up 47°, down 20° |
| Swing angle of drill boom | Right 50°, left 21° |
| Swing angle of carriage | Right 95°, left 35° |
| Tilt angle of beam | 114° |
| Compensation stroke | 1353mm |
| Feed stroke | 4490mm |
| Maximum propelling force | 25KN |
| Method of propulsion | Roller chain |
| Depth of economical drilling | 28m |
| Number of rods | 6+1 |
| Specifications of drilling rod | Φ89*4000 mm |
| DTH hammer | K40、K50 |
| Engine | QSL8.9-C360-30 |
| Number of cylinders | 6 |
| Output power | 265KW/2200rpm |
| Hydraulic pump | 5* gear pump |
| Screw air compressor | Zhejiang Kaishan |
| Air capacity | 20m³/min |
| Air pressure | 22Bar |
| Traveling control system | Hydraulic pilot |
| Drilling control system | Hydraulic pilot |
| Anti-Jamming | Automatic electro-hydraulic anti-jamming |
| Voltage | 24V, DC |
| Safe cab | Meet the requirements of FOPS & ROPS |
| Indoor noise | Below 85dB (A) |
| Seat | Adjustable |
| Air-conditioning | Standard temperature |
| Entertainment | Radio +Mp3 |
PRODUCT Images
Detailed Images
Kaishan group is a professional compressor and drill rig enterprise with over 60 years of history. It is at present the largest air compressor manufacturer in China

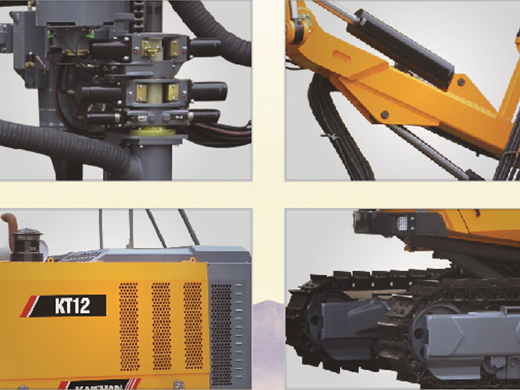

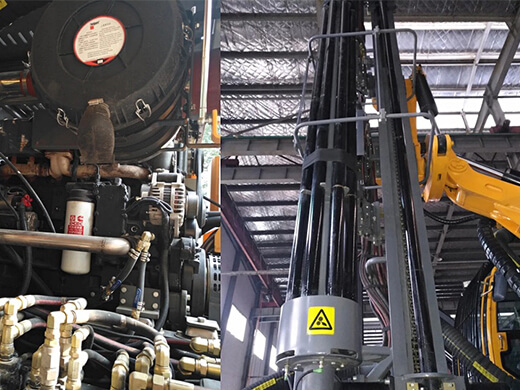

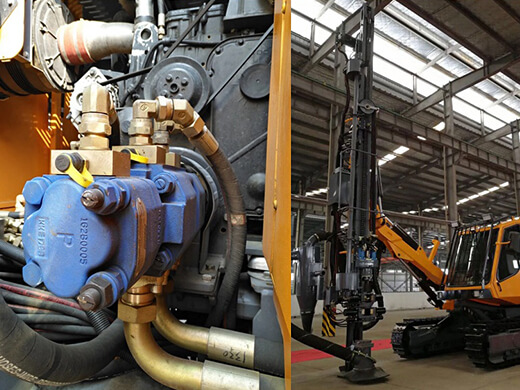

Detailed Images
Accessories
Machine picture
Machine picture
Machine picture
Aplication

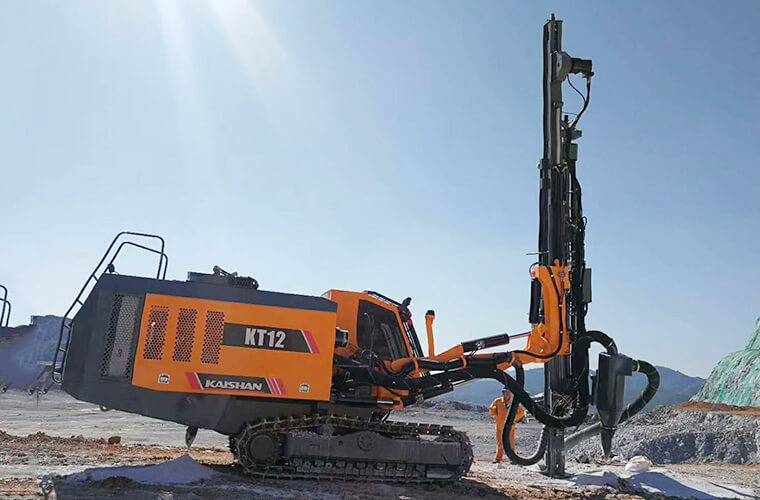

Customer Application Demonstration
