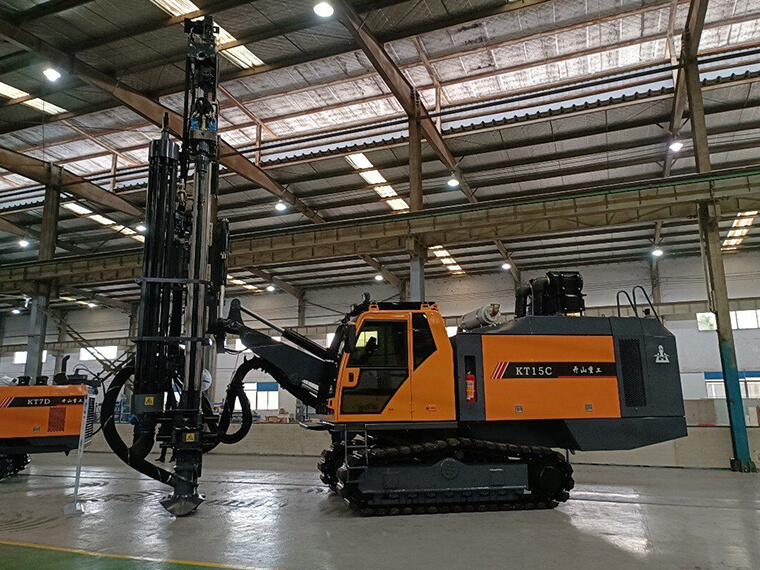

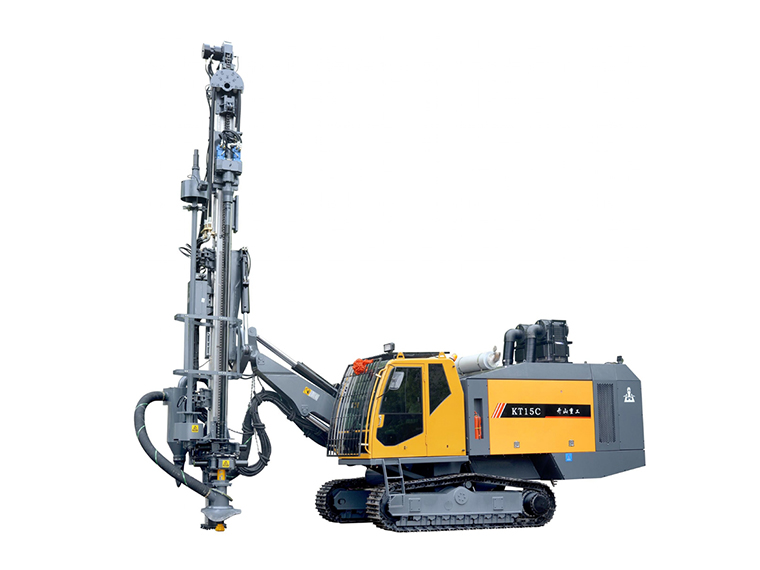

KT15C
The KT15C integrated down the hole drill rig for open use can drilling vertical, inclined and horizontal holes,mainly used for open-pit mine, stonework blast holes and pre-splitting holes.
Weight:
23800 KG
Dimension:
11000*2780*3600mm
Drilling Diameter:
90-115mm
Drilling Depth:
25m
Introduction
Advantage
Specification
Detailed Images
Applications
Service
Introduction
KT15C DTH drilling rig
The KT15C integrated down the hole drill rig for open use can drilling vertical, inclined and horizontal holes,mainly used for open-pit mine, stonework blast holes and pre-splitting holes. It is driven by the Cummins China stage Ⅲ diesel engine and the two-terminal output can drive the screw compression system and hydraulic transmission system. The drill rig is equipped with the automatic rod handling system,drill pipe floating joint module, drill pipe lubrication module,drill pipe sticking prevention system,hydraulic dry dust collection system,air conditioning cab,etc.optional drilling angle and depth indication function.
Get A Free Quote
Advantage
Advantage Of The Drill
Source Manufacturer
Professional Team
Rich Experience
Excellent Technology
Fast Delivery
All in Stock
Specification
Technical Parameter
| Model | KT15C |
| Transport dimensions (L脳W脳H) | 11000*2780*3600 mm |
| Rock hardness | f=6-20 |
| Drilling diameter | 140-190mm |
| Ground clearance | 430mm |
| Weight | 23800kg |
| Travelling speed | 3.0Km/h |
| Climbing capacity | 25 |
| Maximum Feed force | 65000N |
| Rotary Torque | 4100N`m |
| Revolving speed of gyrator | 0-100 r/min |
| Leveling angle of frame | Up 10, down 10 |
| Swing angle of drill boom | Right 45, left 15 |
| Swing angle of carriage | Right 97, left 33 |
| Tilt angle of beam | 125 |
| Compensation length | 1500mm |
| Method of dust removal | Dry/Wet (optional ) |
| Method of automatic anti-jamming | Electro-hydraulic control anti-sticking |
| Method of extension rod | Automatic unloading rod |
| Depth of economical drilling | 36m |
| Method of drilling rod lubrication | Automatic oil injection and lubrication |
| Specifications of drilling rod | 89/102x4000 mm |
| Number of rods | 8+1 |
| DTH hammer | K456 |
| Engine | Cummins QSZ13-C400 |
| Protection of thread of drilling rod | Equipped with the floating joint to protect the thread of drilling rod |
| Output power | 298KW |
| Drilling display | Real-time display of drilling angle and depth |
| Discharge pressure of screw compressor | 24Bar |
| Displacement of screw compressor | 22m/min |
| Air pressure | 22Bar |
| Traveling control system | Hydraulic pilot |
| Drilling control system | Hydraulic pilot |
| Anti-Jamming | Automatic electro-hydraulic anti-Jamming |
| Voltage | 24V, DC |
| Safe cab | Meet the requirements of FOPS & ROPS |
| Indoor noise | Below 85dB(A) |
| Seat | Adjustable |
| Air-conditioning | Standard temperature |
| Entertainment | Radio +Mp3 |
PRODUCT Images
Detailed Images
Kaishan group is a professional compressor and drill rig enterprise with over 60 years of history. It is at present the largest air compressor manufacturer in China

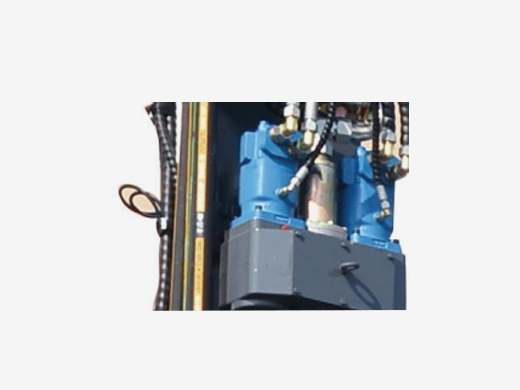

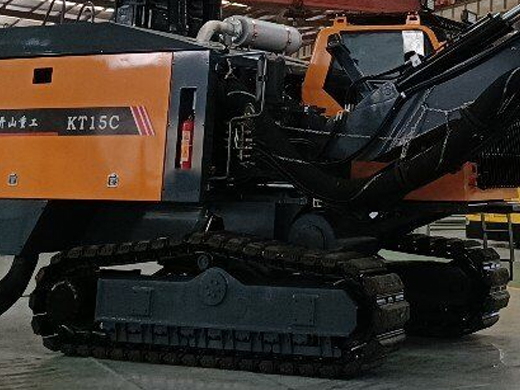

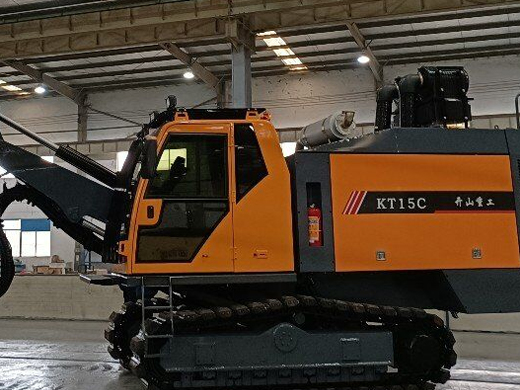

Detailed Images
Accessories

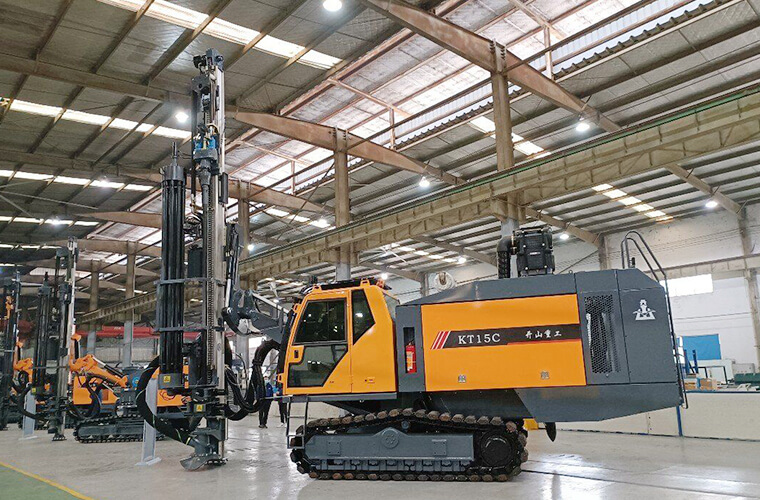

Machine picture
