KT5D
The low and evenly distributed center of gravity of the rig is equipped with heavy track, automatic levelling device and dual locking system that can be controlled individually, which improves the stability of the whole machine and adapts to different terrain conditions.
Weight:
8000 KG
Drilling Diameter:
90-115mm
Drilling Depth:
Max.24m
Dimension:
8300*2450*2650mm
Introduction
Advantage
Specification
Detailed Images
Applications
Service
Introduction

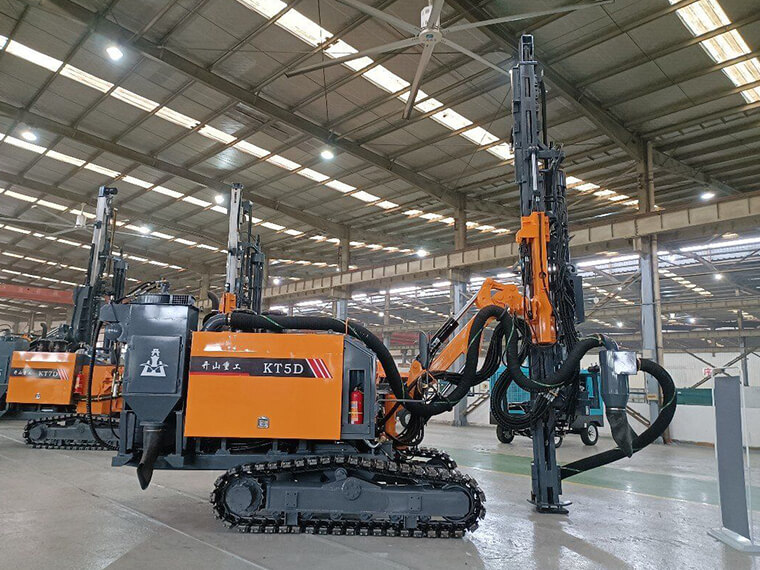

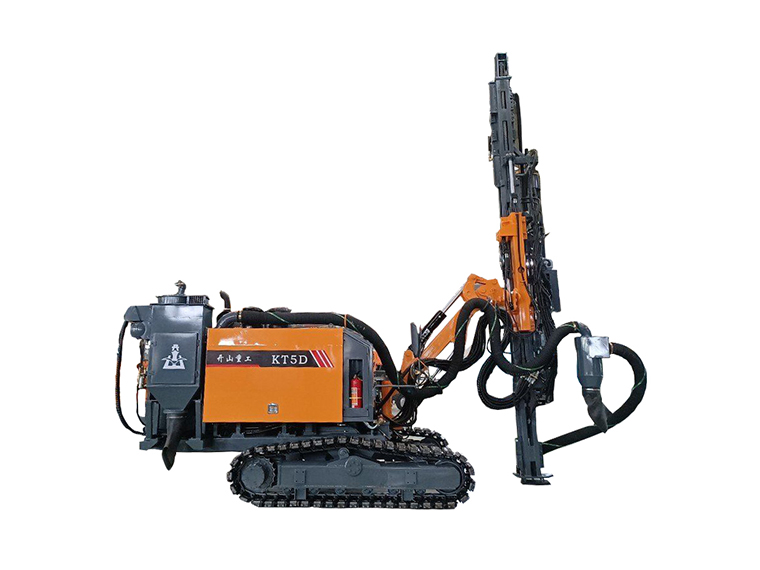

KT5D DTH drilling rig
1. The low and evenly distributed center of gravity of the rig is equipped with heavy track, automatic levelling device and dual locking system that can be controlled individually, which improves the stability of the whole machine and adapts to different terrain conditions. The drill rig is equipped with a two-speed travelling motor and a reducer structure.
2. The large displacement hydraulic pump is installed directly on the rear suction port of the engine, reducing the source of failure.
3. The machine is equipped with a rotary shutter switch valve, which can adjust the drilling speed according to the different use scenarios.
4. The equipment is equipped with real-time monitoring system and stable self-protection system, the operator can check the equipment status at any time; automatic shutdown in the event of failure and beyond the set range.
5. Equipped with an efficient dust collection system, which improves the operating environment and conforms to the concept of environmental protection.
2. The large displacement hydraulic pump is installed directly on the rear suction port of the engine, reducing the source of failure.
3. The machine is equipped with a rotary shutter switch valve, which can adjust the drilling speed according to the different use scenarios.
4. The equipment is equipped with real-time monitoring system and stable self-protection system, the operator can check the equipment status at any time; automatic shutdown in the event of failure and beyond the set range.
5. Equipped with an efficient dust collection system, which improves the operating environment and conforms to the concept of environmental protection.
Get A Free Quote
Advantage
Advantage Of The Drill
Source Manufacturer
Professional Team
Rich Experience
Excellent Technology
Fast Delivery
All in Stock
Specification
Technical Parameter
| Outer dimensions (L×W×H) | 8400*2350*2700 mm |
| Weight | 10000 KG |
| Rated power | 140 KW |
| Drilling hardness | f＝6-20 |
| Drilling diameter | 90-105 mm |
| Depth of economical drilling | 18 m |
| Traveling speed | 2.5/4.0 km/h |
| Climbing capacity | 25° |
| Ground clearance | 430 mm |
| Power of complete machine | 162 KW/2200 r/min |
| Diesel engine | Yuchai YC6J220-T300 |
| Capacity of screw compressor | 12 m³/min |
| Discharge pressure of screw compressor | 15 bar |
| Rotation speed of gyrator | 0-120 r/min |
| Rotary torque (Max) | 1400 N·m (Max) |
| Maximum push-pull force | 35000 N |
| Lifting angle of drill boom | Up 48°, down 16° |
| Tilt angle of beam | 147° |
| Swing angle of carriage | Right 53°, left 52° |
| Swing angle of drill boom | Right 40°, left 38° |
| Leveling angle of frame | Up 10°, down 10° |
| One-time advance length | 3000 mm |
| Compensation length | 900 mm |
| DTH hammer | M30H |
| Drilling rod | φ64×3000 mm |
| Number of rods | 5＋1 |
| Method of dust collecting | Dry type ( hydraulic cyclonic laminar flow) |
| Method of extension rod | Automatic unloading rod |
| Method of drilling rod lubrication | Automatic oil injection and lubrication |
PRODUCT Images
Detailed Images
Kaishan group is a professional compressor and drill rig enterprise with over 60 years of history. It is at present the largest air compressor manufacturer in China

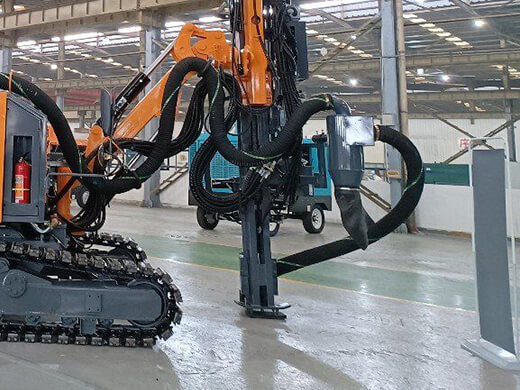

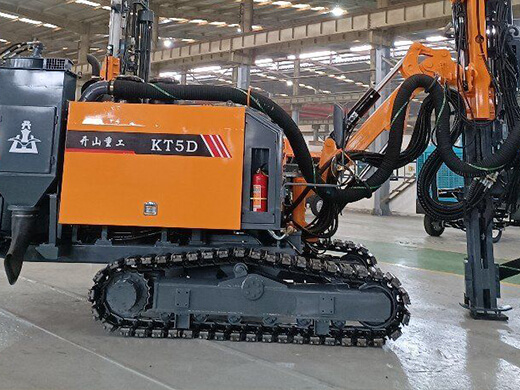

Detailed Images
Accessories

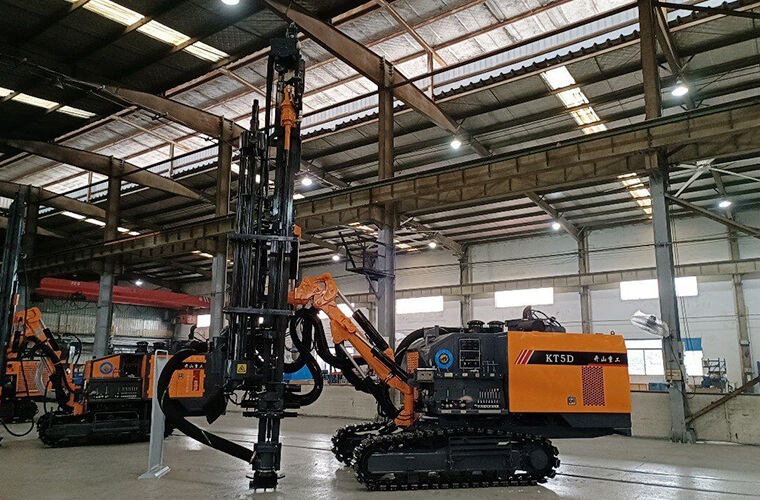

Machine picture
Machine picture
Aplication
Customer Application Demonstration
SERVICE
After-sale Service
Kaishan group is a professional compressor and drill rig enterprise with over 60 years
of history. It is at present the largest air compressor manufacturer in China
Free Maintenance Or Parts Replacement
During the quality guarantee term if any quality problem with the equipment we
responsible for free maintenance or parts replacement.
Free Technical Support
We supply a permanent free technical support to all customers.
Integration Testing
Our equipments would through integration testing before delivery, ex factory
pass rate would reach 100%. We can also supply you photos to prove it's really
assembling in Kaishan factory but not by some small counterfeit workshop
Send Us A Message
If you have any questions or would like tobook a session please contact us.
Most Popular Questions
Kaishan group is a professional compressor and drill rig enterprise with over 60 years
of history. It is at present the
largest air compressor manufacturer in China
How is the quality of your machine?
We have strict quality control process ensure the our products meet the highest standards.
Are you a trading company or a manufacturer?
We are a factory with more than 10 years of manufacturing experience
How to inspect the goods?
We will test the machine, the whole process can be live or recorded video, if customers have time, you can come to the factory to watch the test process.
Do you have after-sales service?
We have after-sales team in the United States, Southeast Asia, the Middle East, Europe, Africa are stationed year-round, at the same time, we will be sent from the domestic professional maintenance master above to solve the problem.
How about quality assurance?
We have a complete and traceable system of quality accountability, from the purchase of raw materials to the delivery of machines. Every aspect of production is precisely controlled.
How long is your delivery cycle?
Generic models are usually in stock and can take up to 20 working days if produced. Customised products take 40-50 working days. Each machine we test drive before it goes out to the customer to ensure the performance of the product in the hands of the customer.
