KT7D
The KT7D integrated down the hole drill rig for open use is an advanced drilling device integrating the down the hole drilling system and screw air compressor system
Weight:
11000 KG
Dimension:
8000*2300*2700 mm
Drilling Diameter:
115-146 mm
Drilling Depth:
24 m
Introduction
Advantage
Specification
Detailed Images
Applications
Service
Introduction

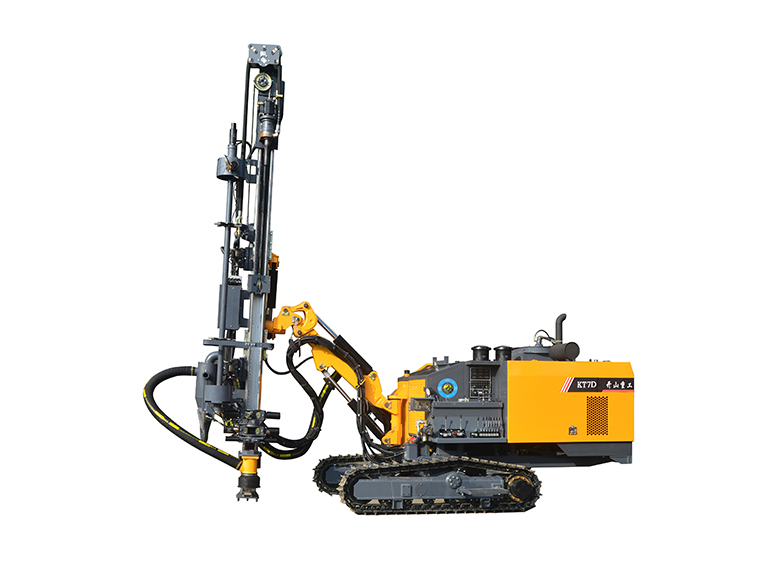

KT7D DTH drilling rig
The KT7D integrated down the hole drill rig for open use is an advanced drilling device integrating the down the hole drilling system and screw air compressor system, it is capable of drilling vertical, inclined and horizontal holes, mainly used for open-pit mine. stonework blast holes and pre-splitting holes. Equipped with the Yuchai Engine and efficient dust collection system, the drill rig meets national standards for emissions and environment. It is typical of energy conservation, efficiency, safety, environment-friendliness, flexibility, simple operation and stable performance, etc.
Get A Free Quote
Advantage
Advantage Of The Drill
Source Manufacturer
Professional Team
Rich Experience
Excellent Technology
Fast Delivery
All in Stock
Specification
Technical Parameter
| Drilling hardness | F=6-20 |
| Drilling diameter | Φ115-146 mm |
| Depth of drilling hole | 24 m |
| Travelling speed | 0-4 km/h |
| Climbing capacity | ≤25° |
| Ground clearance | 430 mm |
| Diesel engine | Yuchai engine YC6A260-T30 |
| Power of complete machine | 195 KW / 2200 r/min |
| Screw compressor | 17m³/min ,18bar |
| Dimensions | 8000×2300×2700 mm |
| Weight | 11000 kg |
| Rotation speed of gyrator | 120 rpm |
| Max rotary torque | 2800 N.m |
| Max push-pull force | 22KN |
| Lifting angle of drill boom | Up 16°,Down 48° |
| Tilt angle of beam | 147 ° |
| Swing angle of carriage | Left 52°,Right 53° |
| Swing angel of drill boom | Left 32°,Right 32° |
| Leveling angle of frame | ±10° |
| One-time advance length | 3590mm |
| Compensation length | 900mm |
| DTH hammer | 4 inch |
| Drill rod | Φ76×3000mm |
| Number of rods | 7+1 |
| Method of extension rod | Automatic unloading rod |
| Duster | 13 pieces filter |
PRODUCT Images

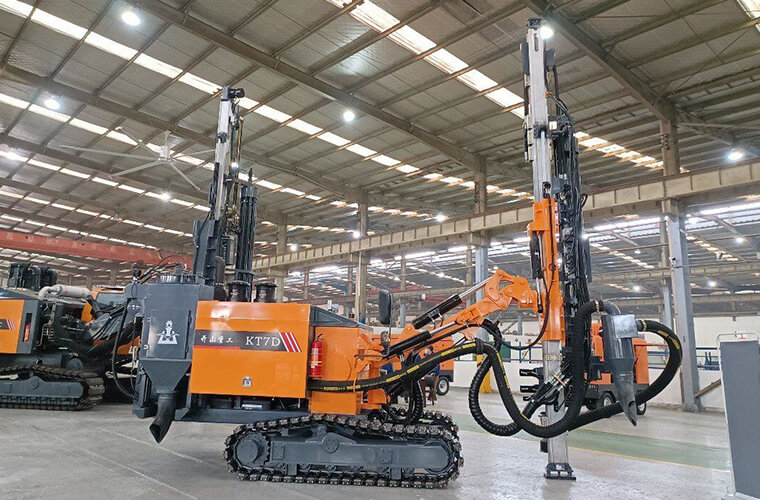

Detailed Images
Kaishan group is a professional compressor and drill rig enterprise with over 60 years of history. It is at present the largest air compressor manufacturer in China

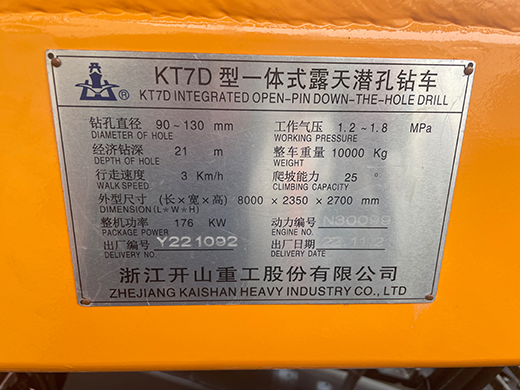

Detailed Images
Accessories

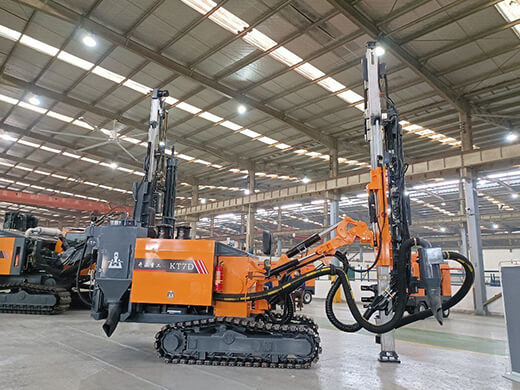

Machine picture

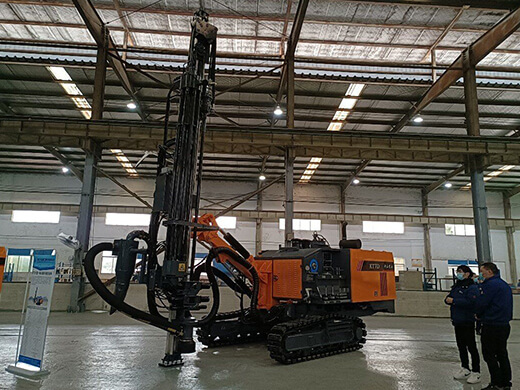

Machine picture

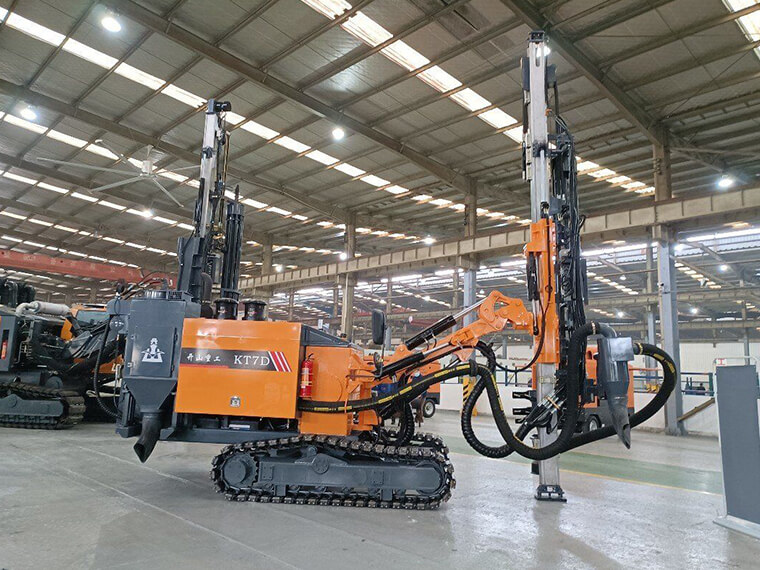

Machine picture
Aplication
Customer Application Demonstration
SERVICE
After-sale Service
Kaishan group is a professional compressor and drill rig enterprise with over 60 years
of history. It is at present the largest air compressor manufacturer in China
Free Maintenance Or Parts Replacement
During the quality guarantee term if any quality problem with the equipment we
responsible for free maintenance or parts replacement.
Free Technical Support
We supply a permanent free technical support to all customers.
Integration Testing
Our equipments would through integration testing before delivery, ex factory
pass rate would reach 100%. We can also supply you photos to prove it's really
assembling in Kaishan factory but not by some small counterfeit workshop
Send Us A Message
If you have any questions or would like tobook a session please contact us.
Most Popular Questions
Kaishan group is a professional compressor and drill rig enterprise with over 60 years
of history. It is at present the
largest air compressor manufacturer in China
How is the quality of your machine?
We have strict quality control process ensure the our products meet the highest standards.
Are you a trading company or a manufacturer?
We are a factory with more than 10 years of manufacturing experience
How to inspect the goods?
We will test the machine, the whole process can be live or recorded video, if customers have time, you can come to the factory to watch the test process.
Do you have after-sales service?
We have after-sales team in the United States, Southeast Asia, the Middle East, Europe, Africa are stationed year-round, at the same time, we will be sent from the domestic professional maintenance master above to solve the problem.
How about quality assurance?
We have a complete and traceable system of quality accountability, from the purchase of raw materials to the delivery of machines. Every aspect of production is precisely controlled.
How long is your delivery cycle?
Generic models are usually in stock and can take up to 20 working days if produced. Customised products take 40-50 working days. Each machine we test drive before it goes out to the customer to ensure the performance of the product in the hands of the customer.
