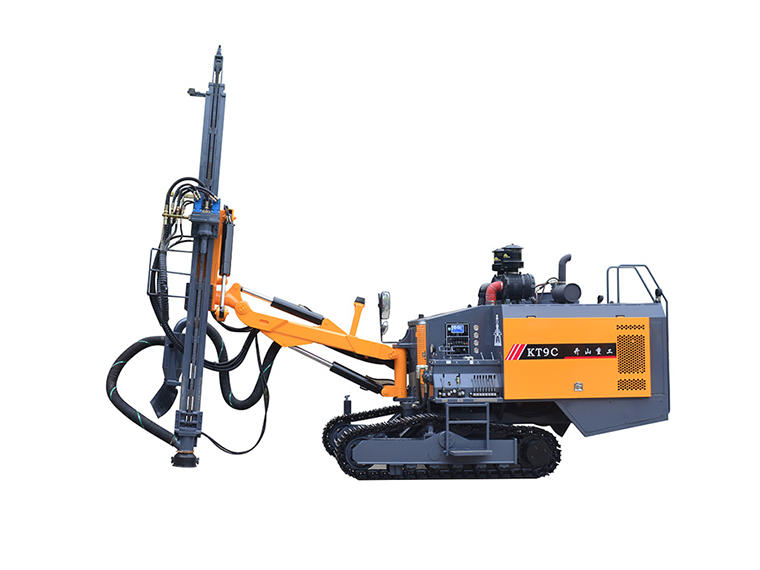

KT9C
KT9C/KT9D integrated open hole drilling machine is a drilling equipment that integrates the drilling system and the screw air compression system.
Weight:
12000 KG
Dimension:
8150*2260*2950(mm)
Diameter of hole:
115~165mm
Power:
265KW
Introduction
Advantage
Specification
Detailed Images
Applications
Service
Introduction
KT9C/KT9D DTH drilling rig
KT9C/KT9D integrated open hole drilling machine is a drilling equipment that integrates the drilling system and the screw air compression system. It can drill vertical, tilting and horizontal holes, and is used for drilling blasting holes and pre-cracks in open pit mines and stone works. It is equipped with Cummins non-road country III diesel engine and efficient dust collection system to meet the national requirements for emission and environmental protection. It has the characteristics of energy saving, high efficiency, safety and environmental protection, flexibility, easy operation and stable performance.
Get A Free Quote
Advantage
Advantage Of The Drill
Source Manufacturer
Professional Team
Rich Experience
Excellent Technology
Fast Delivery
All in Stock
Specification
Technical Parameter
| Model | KT9C | KT9D |
| Drilling hardness | f=6~20 | f=6~20 |
| Borehole range | Φ115~165mm | Φ115~165mm |
| Economic borehole depth | 24m | 24m |
| Travel speed | 0~3Km/h | 0~3Km/h |
| Climbing ability | ≤25° | ≤25° |
| Ground clearance | 430mm | 430mm |
| Auxiliary diesel engine | YCK09360-T400 | YCK09360-T400 |
| Overall power | 265KW/2200r/min | 265KW/2200r/min |
| Screw machine parameters | 20m3/min/22bar | 20m3/min/22bar |
| Overall dimension | 8000×2500×2900mm | 8000×2500×2900mm |
| Vehicle weight | 12500Kg | 12500Kg |
| Gyrator speed | 120Rpm | 120Rpm |
| Maximum turning torque | 3500N•m | 3500N•m |
| Maximum pushing force | 25KN | 25KN |
| Lifting Angle of drill arm | down20°up47° | down20°up47° |
| Slide elevation Angle | 120° | 120° |
| Swing Angle of slide frame | left95°right35° | left95°right35° |
| Drill arm swing Angle | left50°right20° | left50°right20° |
| Frame leveling Angle | ±10 ° | ±10 ° |
| Single advance length | 3590mm | 3590mm |
| Frame compensation length | 900mm | 900mm |
| impactor | 5inches | 5inches |
| Drill pipe | Φ76×3m | Φ76×3m |
| Propulsion mode | Motor + roller chain | Motor + roller chain |
| Connecting rod system | Connecting Rod Mode | Automatic receiving and unloading drill pipe |
| Dust collector | 16 filter elements | 16 filter elements |

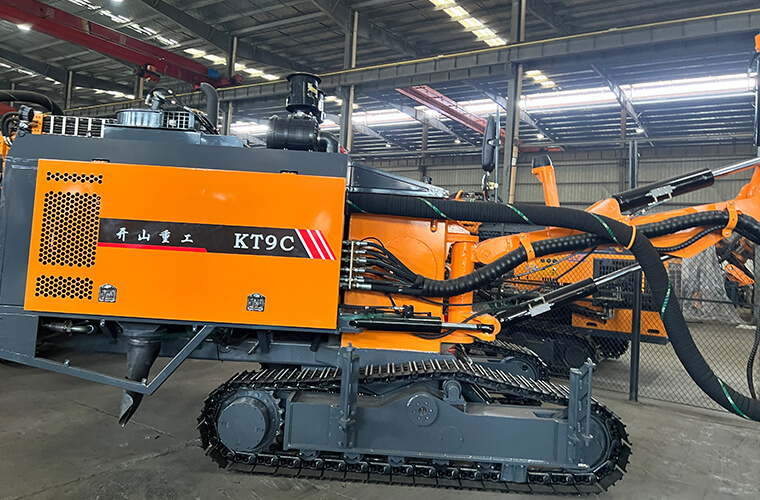

PRODUCT Images
Detailed Images
Kaishan group is a professional compressor and drill rig enterprise with over 60 years of history. It is at present the largest air compressor manufacturer in China
Detailed Images

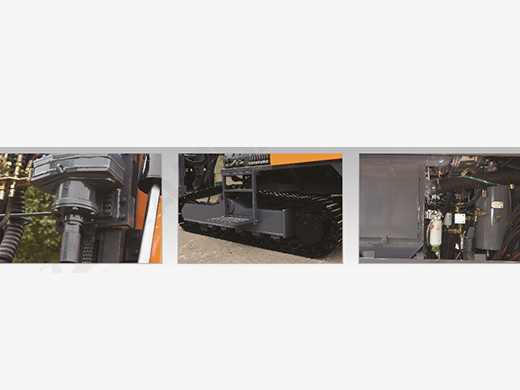

Accessories

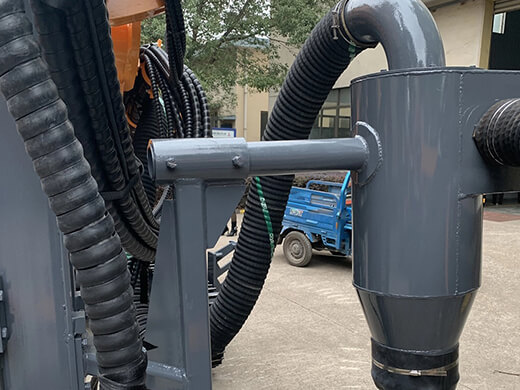

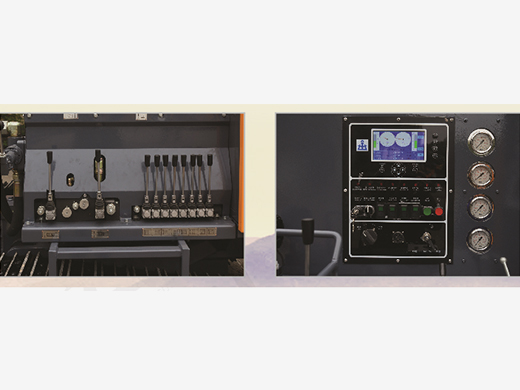

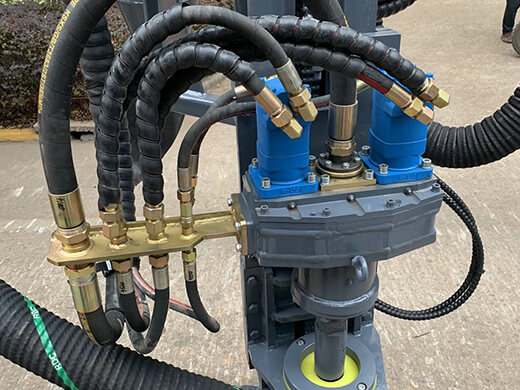

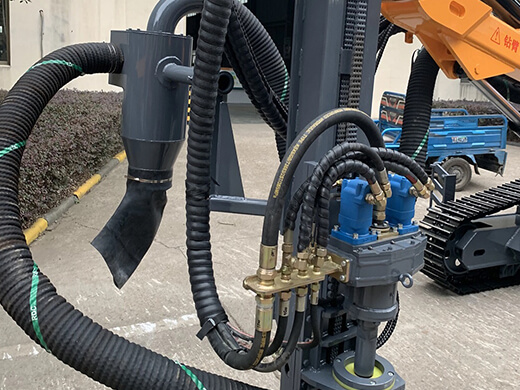

Machine picture
Machine picture
Machine picture
Machine picture
Machine picture
Aplication
Customer Application Demonstration
SERVICE
After-sale Service
Kaishan group is a professional compressor and drill rig enterprise with over 60 years
of history. It is at present the largest air compressor manufacturer in China
Free Maintenance Or Parts Replacement
During the quality guarantee term if any quality problem with the equipment we
responsible for free maintenance or parts replacement.
Free Technical Support
We supply a permanent free technical support to all customers.
Integration Testing
Our equipments would through integration testing before delivery, ex factory
pass rate would reach 100%. We can also supply you photos to prove it's really
assembling in Kaishan factory but not by some small counterfeit workshop
Send Us A Message
If you have any questions or would like tobook a session please contact us.
Most Popular Questions
Kaishan group is a professional compressor and drill rig enterprise with over 60 years
of history. It is at present the
largest air compressor manufacturer in China
How is the quality of your machine?
We have strict quality control process ensure the our products meet the highest standards.
Are you a trading company or a manufacturer?
We are a factory with more than 10 years of manufacturing experience
How to inspect the goods?
We will test the machine, the whole process can be live or recorded video, if customers have time, you can come to the factory to watch the test process.
Do you have after-sales service?
We have after-sales team in the United States, Southeast Asia, the Middle East, Europe, Africa are stationed year-round, at the same time, we will be sent from the domestic professional maintenance master above to solve the problem.
How about quality assurance?
We have a complete and traceable system of quality accountability, from the purchase of raw materials to the delivery of machines. Every aspect of production is precisely controlled.
How long is your delivery cycle?
Generic models are usually in stock and can take up to 20 working days if produced. Customised products take 40-50 working days. Each machine we test drive before it goes out to the customer to ensure the performance of the product in the hands of the customer.
