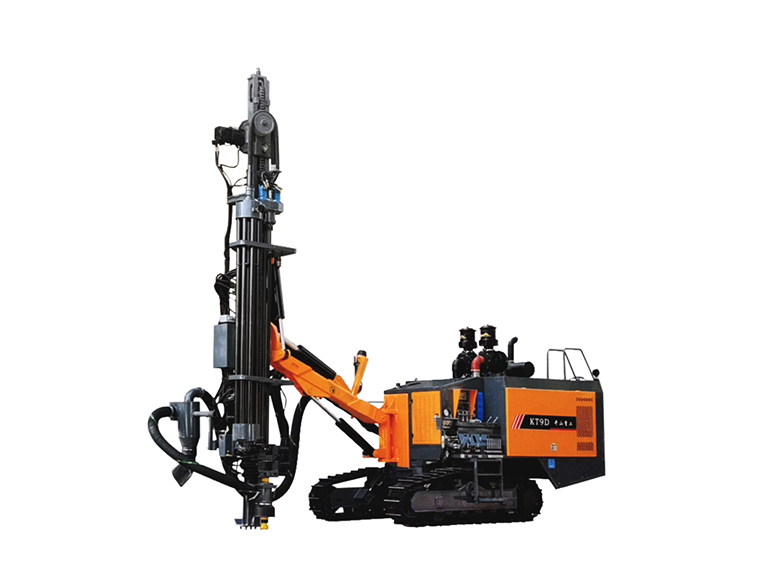

KT9D
KT9C/KT9D integrated open hole drilling machine is a drilling equipment that integrates the drilling system and the screw air compression system.
Weight:
12000 KG
Dimension:
8150*2260*2950(mm)
Diameter of hole:
115~165mm
Power:
265KW
Share With:
KT9D
Introduction
Advantage
Specification
Detailed Images
Applications
Service
Introduction

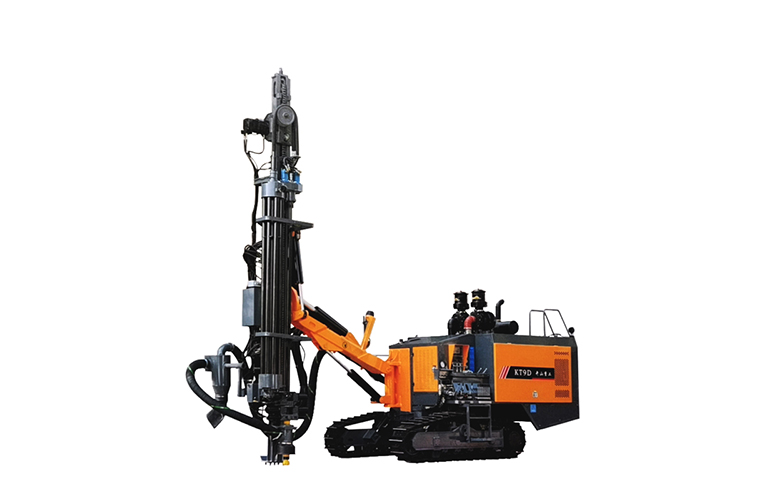

KT9C/KT9D DTH drilling rig
KT9C/KT9D integrated open hole drilling machine is a drilling equipment that integrates the drilling system and the screw air compression system. It can drill vertical, tilting and horizontal holes, and is used for drilling blasting holes and pre-cracks in open pit mines and stone works. It is equipped with Cummins non-road country III diesel engine and efficient dust collection system to meet the national requirements for emission and environmental protection. It has the characteristics of energy saving, high efficiency, safety and environmental protection, flexibility, easy operation and stable performance.
Get A Free Quote
Advantage
Advantage Of The Drill
Source Manufacturer
Professional Team
Rich Experience
Excellent Technology
Fast Delivery
All in Stock
Specification
Technical Parameter
Model KT9C KT9D
Drilling hardness f=6~20 f=6~20
Borehole range Φ115~165mm Φ115~165mm
Economic borehole depth 24m 24m
Travel speed 0~3Km/h 0~3Km/h
Climbing ability ≤25° ≤25°
Ground clearance 430mm 430mm
Auxiliary diesel engine YCK09360-T400 YCK09360-T400
Overall power 265KW/2200r/min 265KW/2200r/min
Screw machine parameters 20m3/min/22bar 20m3/min/22bar
Overall dimension 8000×2500×2900mm 8000×2500×2900mm
Vehicle weight 12500Kg 12500Kg
Gyrator speed 120Rpm 120Rpm
Maximum turning torque 3500N•m 3500N•m
Maximum pushing force 25KN 25KN
Lifting Angle of drill arm down20°up47° down20°up47°
Slide elevation Angle 120° 120°
Swing Angle of slide frame left95°right35° left95°right35°
Drill arm swing Angle left50°right20° left50°right20°
Frame leveling Angle ±10 ° ±10 °
Single advance length 3590mm 3590mm
Frame compensation length 900mm 900mm
impactor 5inches 5inches
Drill pipe Φ76×3m Φ76×3m
Propulsion mode Motor + roller chain Motor + roller chain
Connecting rod system Connecting Rod Mode Automatic receiving and unloading drill pipe
Dust collector 16 filter elements 16 filter elements
PRODUCT Images
Detailed Images
Kaishan group is a professional compressor and drill rig enterprise with over 60 years of history. It is at present the largest air compressor manufacturer in China

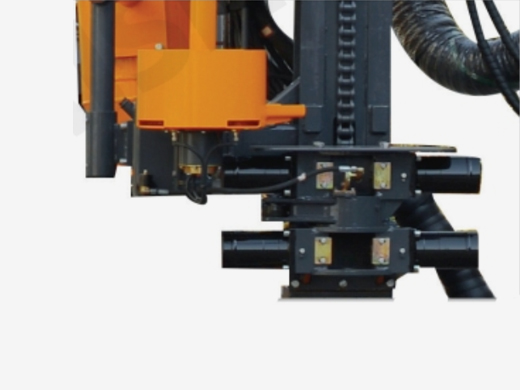

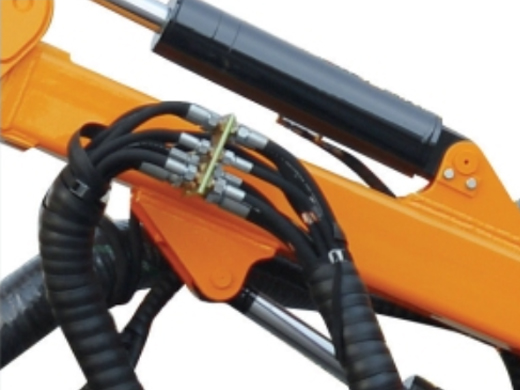

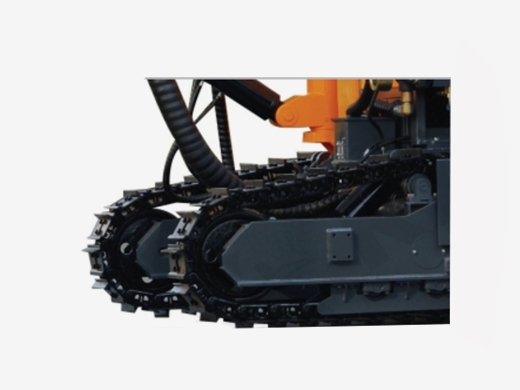

Detailed Images
Accessories
Machine picture
Machine picture
Machine picture
Machine picture
Machine picture
Machine picture
Aplication
Customer Application Demonstration
SERVICE
After-sale Service
Kaishan group is a professional compressor and drill rig enterprise with over 60 years of history. It is at present the largest air compressor manufacturer in China
Free Maintenance Or Parts Replacement
During the quality guarantee term if any quality problem with the equipment we responsible for free maintenance or parts replacement.
Free Technical Support
We supply a permanent free technical support to all customers.
Integration Testing
Our equipments would through integration testing before delivery, ex factory pass rate would reach 100%. We can also supply you photos to prove it's really assembling in Kaishan factory but not by some small counterfeit workshop
Send Us A Message
If you have any questions or would like tobook a session please contact us.
Most Popular Questions
Kaishan group is a professional compressor and drill rig enterprise with over 60 years of history. It is at present the largest air compressor manufacturer in China
How is the quality of your machine?
We have strict quality control process ensure the our products meet the highest standards.
Are you a trading company or a manufacturer?
We are a factory with more than 10 years of manufacturing experience
How to inspect the goods?
We will test the machine, the whole process can be live or recorded video, if customers have time, you can come to the factory to watch the test process.
Do you have after-sales service?
We have after-sales team in the United States, Southeast Asia, the Middle East, Europe, Africa are stationed year-round, at the same time, we will be sent from the domestic professional maintenance master above to solve the problem.
How about quality assurance?
We have a complete and traceable system of quality accountability, from the purchase of raw materials to the delivery of machines. Every aspect of production is precisely controlled.
How long is your delivery cycle?
Generic models are usually in stock and can take up to 20 working days if produced. Customised products take 40-50 working days. Each machine we test drive before it goes out to the customer to ensure the performance of the product in the hands of the customer.
