KW180
The KW180 multifunctional drillrig of geothermal wellis an improved device. Equipped with the Yuchai four-cylinder engine (China ll),thedril rig meets naional standards for emissions and environment.
Weight:
5800 KG
Warranty:
6 Months
Drilling Diameter:
90-152mm
Drilling Depth:
Max.25m
Introduction
Advantage
Specification
Detailed Images
Applications
Service
Introduction

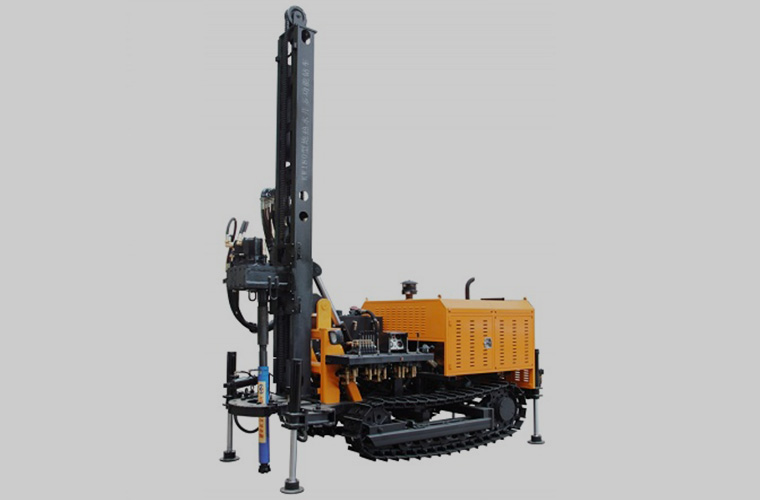

KW180 Water Well Drilling Rig
The KW180 multifunctional drillrig of geothermal wellis an improved device. Equipped with the Yuchai four-cylinder engine (China ll),thedril rig meets naional standards for emissions and environment. Meanwhile, the hydraulic system, supporing configuration andappearance, etc. have been optimized, thus improving the performance and working eficiency. The double rotation motor increases therotary torque and revolving speed.
The one-ton winch is optional for KW180 multifunctional drillrig of geothermal wel, making lifting easier. in addition, the 1.5m supporting oil cylinder is also optional, making the loading and transport convenient
The one-ton winch is optional for KW180 multifunctional drillrig of geothermal wel, making lifting easier. in addition, the 1.5m supporting oil cylinder is also optional, making the loading and transport convenient
Get A Free Quote
Advantage
Advantage Of The Drill
Source Manufacturer
Professional Team
Rich Experience
Excellent Technology
Fast Delivery
All in Stock
Specification
Technical Parameter
| Model of drill rig | KW180 |
| Feed stroke | 2m |
| Supporting drilling rod | Φ76x2m or Φ89x2m |
| Outer dimensions | 4600 x 1550 x2350mm |
| Drilling hardness | f=6-20 |
| Drilling diameter | 6115-202mm |
| Maximum depth of drilling | 180m |
| Veight of complete vehicle | 4500kg |
| Ground clearance | 280mm |
| Climbing capacity | 15° |
| DTH hammer | K4、K5、K6 |
| Air consumption | 19-30m3/min |
| Supporting power | Yuchai YCD4R23T8£0 (59KW/2400r/min) |
| Power parameters | 58KW/2200r/min |
| Travelling speed | 0-2km/h |
| Rotary torque | 4200N • m |
| Rotary speed | 0-100rpm |
| Lifting method | Oil cylinder-leaf chain |
| Rated lifting force | 50KN |
| Advancing speed of sliding plate | 15-51m/s |
| Lifting speed of sliding plate | 8-26m/s |
| Volume of hydraulic oil tank | 200L |
| Volume of diesel oil tank | 60L |
| Drilling method | Down-the-hole hammer or mud, etc. |
PRODUCT Images
Detailed Images
Kaishan group is a professional compressor and drill rig enterprise with over 60 years of history. It is at present the largest air compressor manufacturer in China
Detailed Images
Accessories
Machine picture
Machine picture
Machine picture
Machine picture
Machine picture
Aplication
Customer Application Demonstration
SERVICE
After-sale Service
Kaishan group is a professional compressor and drill rig enterprise with over 60 years
of history. It is at present the largest air compressor manufacturer in China
Free Maintenance Or Parts Replacement
During the quality guarantee term if any quality problem with the equipment we
responsible for free maintenance or parts replacement.
Free Technical Support
We supply a permanent free technical support to all customers.
Integration Testing
Our equipments would through integration testing before delivery, ex factory
pass rate would reach 100%. We can also supply you photos to prove it's really
assembling in Kaishan factory but not by some small counterfeit workshop
Send Us A Message
If you have any questions or would like tobook a session please contact us.
Most Popular Questions
Kaishan group is a professional compressor and drill rig enterprise with over 60 years
of history. It is at present the
largest air compressor manufacturer in China
How is the quality of your machine?
We have strict quality control process ensure the our products meet the highest standards.
Are you a trading company or a manufacturer?
We are a factory with more than 10 years of manufacturing experience
How to inspect the goods?
We will test the machine, the whole process can be live or recorded video, if customers have time, you can come to the factory to watch the test process.
Do you have after-sales service?
We have after-sales team in the United States, Southeast Asia, the Middle East, Europe, Africa are stationed year-round, at the same time, we will be sent from the domestic professional maintenance master above to solve the problem.
How about quality assurance?
We have a complete and traceable system of quality accountability, from the purchase of raw materials to the delivery of machines. Every aspect of production is precisely controlled.
How long is your delivery cycle?
Generic models are usually in stock and can take up to 20 working days if produced. Customised products take 40-50 working days. Each machine we test drive before it goes out to the customer to ensure the performance of the product in the hands of the customer.
